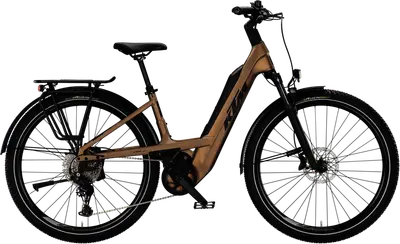

    MACINA EVERY 8402026 KTM
    Recommended
    MSRP
    ($5,129)
    Where to Buy
    ($5,129)

    At KTM

    Category
    		Crosscountry, E-Bike
    5.4
    Frame
    		Aluminum
    		Suntour MOBIE
    Wheels
    Wheel Size
    		29″
    		Shimano CUES Hydraulic Disc
    		Bosch 600W 120Nm mid-drive
    		Bosch 800Wh
    		CUES
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		80mm
    Brand Site

    ktm-bikes.at

    Summary
    		The KTM MACINA EVERY 840 is a 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    MACINA EVERY 840
    Other Crosscountry bikes
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    MACINA EVERY 8402026 KTM
    Frame

    Macina Trekking Onroad Alloy 6061|PTS800 Bosch BDU38 /T5250

    BB Standard: Bosch, Press Fit

    Fork

    Suntour Mobie34-D Air 29" 2CR 80mm 15AH2

    Travel: 80mm

    Spring Type: Air

    Bottom Bracket

    Bosch, press-fit

    Headset

    Acros AICR internal 1.5"-1.5"

    Stem

    KTM adjust. 0-60° ICR

    Handlebar

    Ergotec Lady Town 31,8 690mm

    Saddle

    Selle Royal Lookin Evo

    Seatpost

    KTM COMP dropper internal 30.9 T:100

    Type: Dropper

    Pedals

    MTB-Pedal flat VPE-527 alloy

    Grips

    GRIP ERGON GP10

    Groupset
    Rear Derailleur

    Shimano CUES U6000-11/10 LG shadow+

    Crank

    KTM E-COMP2 ISIS 170mm Q8

    Shifters

    Shimano CUES U6000-10 display

    Cassette

    Shimano LG400-10 / 11-48

    Chain

    Shimano LG500

    Chain Guide

    motor/cable cover PTS 800

    Brakes

    Shimano CUES U6000-10 display

    Type: Shimano CUES Hydraulic Disc

    Wheels
    Tires

    Front: Continental E-Ruban Plus 58-622 Reflex, Rear: Continental E-Ruban Plus 58-622 Reflex

    Electric Components
    Motor

    Bosch PERFORMANCE CX BDU3840 up to 120Nm

    Battery

    Bosch PowerTUBE 800Wh horizontal

    Display

    Bosch PURION 200 Display & Remote

    Charger

    Bosch STANDARD Charger 4A

    Accessories
    Fenders

    SKS C70R Edge AL 29" Trekking

    Racks

    KTM tour60 snap-it 2.0/monkeyload|childseat + rack clip
