    CHICAGO 2922026 KTM
    Recommended
    MSRP
    ($916)
    Where to Buy
    ($916)

    At KTM

    Category
    		Crosscountry
    Weight
    		34.0 lbs
    3.1
    Frame
    		Aluminum
    		Suntour XCE
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Acera, Altus
    Drivetrain
    		2 × 8
    Suspension
    		Hardtail
    Front Travel
    		80mm
    Brand Site

    ktm-bikes.at

    Summary

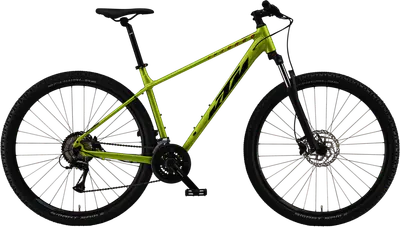

    		The KTM CHICAGO 292 is a 29″ aluminum frame hardtail crosscountry bike with modest components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    CHICAGO 292
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    CHICAGO 292

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CHICAGO 2922026 KTM
    Frame

    29" Alloy 6061 MTB / M-1110

    Fork

    Suntour XCE28 coil 29" 80mm

    Travel: 80mm

    Spring Type: Coil

    Headset

    Ritchey OE Zero Logic 1.1/8"

    Stem

    KTM Line 7°

    Handlebar

    KTM Line rizer12

    Saddle

    KTM Line Sport

    Seatpost

    KTM Line 27.2

    Type: Rigid

    Pedals

    KTM Line MTB BF

    Groupset
    Rear Derailleur

    Shimano Acera M3020-8 SGS

    Front Derailleur

    Shimano Altus M313

    Crank

    Shimano M315 36-22T

    Shifters

    Shimano EF505-8 display

    Cassette

    Shimano HG400-8 / 11-40

    Chain

    KMC Z8.3

    Brakes

    Shimano EF505-8 display

    Type: Shimano Hydraulic Disc

    Wheels
    Rims

    KTM Line - Shimano HB-TX505 CL 32H 100 QR / KTM 28" Sport 32H; 622x20 / Pillar 2.0 INOX, silver

    Tires

    Front: Schwalbe Smart Sam K-Guard 54-622, Rear: Schwalbe Smart Sam K-Guard 54-622

    Disc Rotors

    Shimano RT10 CL 180 / 160
