MSRP | $1,999 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Frame | Aluminum | |
| RockShox Recon Silver TK | ||
| X-Fusion | ||
Wheels | Aluminum | |
Wheel Size | 26″ | |
| Avid Hydraulic Disc | ||
| X9, X7 | ||
Drivetrain | 3 × 10 | |
Suspension | Full | |
Front Travel | 120mm | |
Rear Travel | 120mm | |
Brand Site | ||

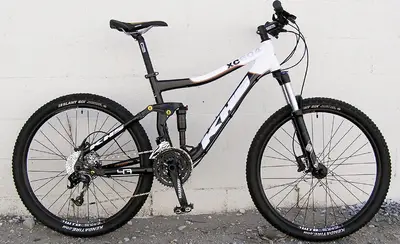

Summary | The KHS XC 604 is a 26″ aluminum frame full suspension trail bike with upper mid-range components. | |
Ask 99 Spokes
Frame | 120mm, 4-bar Horst bearing linkage, Custom formed 6061 double butted alloy Color: Infinite Black / Orange Pulp | |
|---|---|---|
Fork | Rock Shox Recon Silver TK, Solo Air w/alloy steer tube, 120mm,Hydraulic dampening, Ext rebound + TurnKey Lockout Travel: 120mm Spring Type: Air | |
Shock | X-Fusion E1RL air, hydrulic dampening, ext rebound adj & lock out Travel: 120mm | |
Bottom Bracket | SRAM GXP outboard cartridge bearing | |
Headset | Cane Creek, ZS44 A-Head 1-1/8, Zero Stack, 44/30 | |
Stem | Kore Race, S = 80mm,M=90mm, L = 100mm, XL = 110mm | |
Handlebar | Kore Riser, 680X20mm,31.8 | |
Saddle | WTB Volt Comp, Black and Orange | |
Seatpost | Q2 Light Alloy, 30.9x350mm Type: Rigid | |
Pedals | Wellgo alloy ATB 1 pc.w/cnc sides | |
Grips | Q2 Lock-on |
Rear Derailleur | SRAM X9, Long Cage, 10-speed | |
|---|---|---|
Front Derailleur | SRAM X7, 3x10,High Direct Mount | |
Crank | SRAM S1000 3.3, 10S, alloy rings, 2pc, GXP, 44/33/22, S = 170mm,M-XL =175mm | |
Shifters | SRAM X5, 3x10 | |
Cassette | SRAM PG-1030, 11-36T, 10-speed | |
Chain | SRAM PC-1031 | |
Brakes | Avid Elixir 1 disc hydraulic,160mmRotors Type: Avid Hydraulic Disc | |
Brake Levers | Avid Elixir 1 |
Rims | WTB SX17 Disc, 26x32H,Doublewall | |
|---|---|---|
Spokes | 14G Black with alloy nipples, 32X32 | |
Tires | Kenda Slant 6, 26 X 2.1, Folding, 60 tpi |
