    XC 1042012 KHS
    Recommended
    MSRP
    $1,249
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    3.7
    Frame
    		Aluminum
    		RST BLAZE
    		RockShox
    Wheels
    		Aluminum
    Wheel Size
    		26″
    		Hydraulic Disc
    		SLX, Alivio
    Drivetrain
    		3 × 9
    Suspension
    		Full
    Front Travel
    		120mm
    Rear Travel
    		120mm
    Brand Site
    Summary

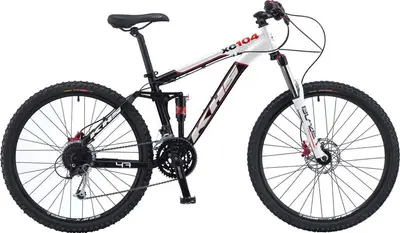

    		The KHS XC 104 is a 26″ aluminum frame full suspension trail bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    XC 104

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    XC 1042012 KHS
    Frame

    120mm, 4-bar Horst bearing linkage, Custom formed 6061 double butted alloy

    Color: Black / White

    Fork

    RST Blaze TNL, 120mm,Hydraulic dampening, hydraulic lock out, Pre-load adj

    Travel: 120mm

    Spring Type: Coil

    Shock

    RockShox Bar R, air w/hydraulic dampening & IFP, rebound adj, 190mm

    Travel: 120mm

    Bottom Bracket

    TruVativ power spline cartridge bearing, 118mm

    Headset

    Cane Creek, 5ZS44, A-Head 1-1/8, Zero Stack, 44/30

    Stem

    Alloy 7 degree 4-bolt, 31.8

    Handlebar

    Alloy,31.8 680X25mm

    Saddle

    KHS Sport Dual Density

    Seatpost

    Alloy micro-adjust, 30.9x350mm

    Type: Rigid

    Pedals

    Wellgo alloy ATB 1 pc.

    Grips

    KHS Sport, Dual Compound

    Groupset
    Rear Derailleur

    Shimano RD-M430 Alivio, 9 speed

    Front Derailleur

    Shimano FD-M661 SLX,Down Swing, direct mount

    Crank

    Truvativ E400 3.0, 44/32/22, 15" =170mm, 17"-21" =175mm

    Shifters

    Shimano SL-M390 Acera, Pods

    Cassette

    Shimano CS HG20-9, 11-34T, 9-Speed

    Chain

    KMC Z99

    Brakes

    Bengal Helix 5.0,Hydraulic Disc, 160mm Low Temperature Rotors

    Type: Hydraulic Disc

    Brake Levers

    Bengal Helix 5.0

    Wheels
    Rims

    Weinmann XM25,Double wall, 26", 32H

    Spokes

    14G black 32X32

    Tires

    Kenda Klaw, K876/886, 26X2.1, 60 TPI
