Bike Comparison
    WINSLOW2019 KHS
    Recommended
    MSRP
    $689
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    Frame
    		Aluminum
    Fork
    		Suntour XCT
    Wheels
    		Aluminum
    Wheel Size
    		29″
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		Suntour
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    khsbicycles.com

    Summary

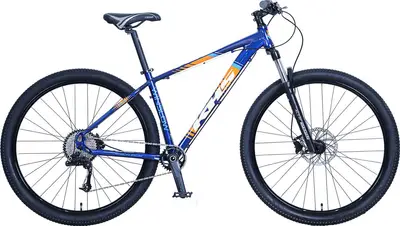

    		The KHS WINSLOW is a 29″ aluminum frame hardtail crosscountry bike with modest components.
    Similar Bikes
    Accessories
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    24 mph

    WINSLOW

    Highest gear

    (descending)

    Geometry
    Specs
    WINSLOW2019 KHS
    Frame

    Alloy 6061 w/Custom Formed TT & DT, w/Replaceable Derailleur Hanger

    Colors: Dark Blue; Matte Black

    Fork

    SR XCT30, HLO, 100mm, Hydraulic Lock-Out, Preload Adjust

    Bottom Bracket

    SR Outboard Cartridge Bearing

    Headset

    FSA Orbit 1.5E, Zero Stack, 1 1/8"~1.5

    Stem

    Alloy 3D Forged, 4-Bolt, 7 Degree, 31.8mm, S: 60mm, M: 70mm, L: 80mm, XL: 90mm

    Handlebar

    Alloy Riser, 31.8mm, 720x20mm

    Saddle

    KHS Sport

    Seatpost

    Alloy Micro-Adjust, 31.6x350mm

    Pedals

    Resin ATB Platform w/DU Bearings

    Grips

    KHS Sport

    Groupset
    Rear Derailleur

    S-Ride, RD-M300C, 9-Speed

    Front Derailleur

    n/a

    Crank

    SR Zeron, 2-pc, Boost, 30T Zig Zag, S: 170, M-XL: 175

    Shifters

    S-Ride, RD-M300C, 9-Speed

    Cassette

    S-Ride, CS-M300C 11-42T, 9-Speed

    Chain

    KMC X9 w/MissingLink

    Brakes

    Shimano MT200 Hydraulic Disc, 180/160mm Rotors Wave12

    Brake Levers

    Shimano MT200

    Wheels
    Rims

    Alloy Disc Double Wall, 29x32H

    Spokes

    14g Black 32x32

    Tires

    29x2.1 Knobby, 27 TPI
