    TUCSON2022 KHS
    Recommended
    MSRP
    $2,749
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    5.6
    Frame
    		Carbon
    		Suntour RAIDON
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Deore Hydraulic Disc
    		SLX, Deore
    Drivetrain
    		1 × 12
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    khsbicycles.com

    Summary

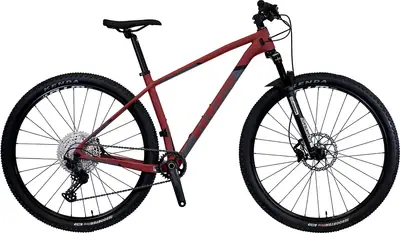

    		The KHS TUCSON is a 29″ carbon frame hardtail crosscountry bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    TUCSON

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    TUCSON2022 KHS
    Frame

    KHS Full MSD Carbon 29er w/1.5 Taper Headtube, Disc Only, Internal Cable Routing, 12x148mm Boost, 27.5 Plus & 29 Plus Compatible

    Color: Matte Red Rock

    Fork

    SR Raidon 32-LOR, 29 Std/27.5 Plus, 100mm Air, Hydraulic Speed Lock-Out w/Ext. Rebound Dampening Adj, 1-1/8~ 1.5 Aluminum Taper, 15QR x 110 Boost

    Travel: 100mm

    Spring Type: Air

    Shock

    n/a

    Bottom Bracket

    SR Press Fit

    Headset

    FSA Orbit C-40-CF-ACB, N.42/CF/ACB, 1-1/8”~1.5” Integrated

    Stem

    FSA V-Drive, 3D Forged, 4-bolt, 6 Degree, 31.8mm

    Handlebar

    FSA Comet Low Riser, 31.8mm, 720x15mm

    Saddle

    WTB Volt Med SL

    Seatpost

    KHS Aluminum Micro-Adjust, 31.6mm

    Type: Rigid

    Pedals

    n/a

    Grips

    Q2 Lock-on

    Groupset
    Rear Derailleur

    Shimano New SLX RD-M7100

    Front Derailleur

    n/a

    Crank

    SR Zeron, 2-pc, Boost, 32T Zig/Zag

    Shifters

    Shimano New Deore, SL-M6100, 12s, Trigger, Right Only, I-Spec EV

    Cassette

    Shimano CS-M6100, 10-51T, 12-Speed

    Chain

    Shimano CN-M6100

    Brakes

    Shimano MT410 Hydraulic Disc, 180/160mm Rotors= RT54 CenterLock

    Type: Shimano Deore Hydraulic Disc

    Brake Levers

    Shimano M4100, I-Spec EV

    Wheels
    Rims

    WTB ST-I25 TCS, Disc, Double Wall, 29x28H, Tubeless-Ready

    Spokes

    14G Stainless Black w/Aluminum Nipples, 28x28

    Front Hub

    Shimano HB-MT410, CenterLock Disc, 15mm x 110mm, Boost

    Rear Hub

    Shimano FH-MT401 Disc Cassette, 12 x 148mm, Boost

    Tires

    Kenda Booster Pro, 120TPI Folding, Tubeless-Ready, 29x2.2''
