    TUCSON2018 KHS
    Recommended
    MSRP
    $2,399
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    5.5
    Frame
    		Carbon
    		Suntour RAIDON
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Acera Hydraulic Disc
    		SLX
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site
    Summary

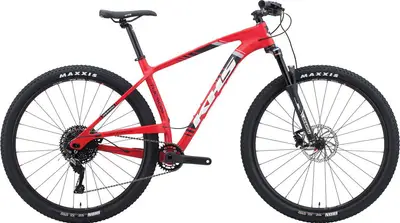

    		The KHS TUCSON is a 29″ carbon frame hardtail crosscountry bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    TUCSON

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    TUCSON2018 KHS
    Frame

    New KHS Full MSD Carbon 29er w/1.5 Taper Headtube, Disc Only, Internal Cable Routing, 12X148 Boost, 27.5 Plus & 29 Plus Compatible

    BB Standard: BB86/BB92, Press Fit

    Color: Matte Red

    Fork

    SR Raidon 32-LOR, 29 Std/27.5 Plus, 100mm Air, Hydraulic Speed Lock-Out w/Ext. Rebound Damping Adj, 1-1/8~ 1.5 Alloy Taper, 15Q x 110 Boost

    Travel: 100mm

    Spring Type: Air

    Shock

    n/a

    Bottom Bracket

    PF92

    Headset

    FSA Orbit C-40-CF-ACB, N.42/CF/ACB, 1-1/8"~1.5" Integrated

    Stem

    Alloy 3D Forged, 4-bolt, 6 Degree, 31.8, M-L: 80mm, XL: 90mm

    Handlebar

    Alloy Butted Low Riser, 31.8, 720X12mm

    Saddle

    WTB Volt Sport

    Seatpost

    KHS Alloy Micro-adjust, 31.6X350mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    Shimano SLX RD-M7000

    Front Derailleur

    n/a

    Crank

    Samox 2pc Forged, PF92, Narrow Wide 32T, Boost, 175

    Shifters

    Shimano SLX, SL-M7000, 11s, Trigger, Right Only

    Cassette

    Sun Race, 11-46T, 11-speed

    Chain

    KMC X11EL-1 w/Missing Link

    Brakes

    Shimano M396 Hydraulic Disc,180/160mm Rotors Wave 12

    Type: Shimano Acera Hydraulic Disc

    Brake Levers

    Shimano M396

    Wheels
    Rims

    WTB STP-i23 TCS, Disc, Double Wall, 29x28H, Tubeless Ready

    Spokes

    14G Stainless Black w/Alloy Nipples, 28X28

    Tires

    Maxxis Ikon EXO/TR, 60TPI Folding, Tubeless Ready, 29X2.2
