    TUCSON2017 KHS
    Recommended
    MSRP
    $2,069
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    5.7
    Frame
    		Carbon
    		X-Fusion SLIDE
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Hydraulic Disc
    		GX, X5
    Drivetrain
    		2 × 10
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site
    Summary

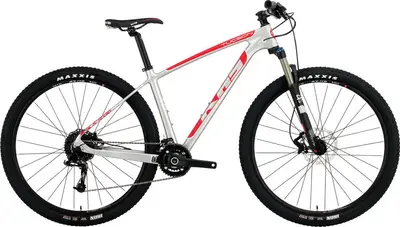

    		The KHS TUCSON is a 29″ carbon frame hardtail crosscountry bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    TUCSON

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    TUCSON2017 KHS
    Frame

    KHS Full MSD Carbon 29er w/1.5 Taper Headtube, Disc Only, Internal Cable Routing

    BB Standard: PF30, Press Fit

    Color: Matte Silver

    Fork

    X-Fusion Slide RL2, Air, 100mm, External Rebound, Lockout, 1.5 Taper, 15Q

    Travel: 100mm

    Spring Type: Air

    Shock

    N/A

    Bottom Bracket

    KHS PF30

    Headset

    FSA Orbit C-40-CF-ACB, N.42/CF/ACB, 1-1/8"~1.5" Integrated

    Stem

    Alloy 3D Forged, 4-bolt,6 Degree, 31.8 S: 70mm, M-L: 80mm, XL: 90mm

    Handlebar

    Alloy Butted Low Riser, 31.8, 720X12mm

    Saddle

    WTB Volt Sport

    Seatpost

    Alloy Micro-adjust, 31.6X350mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    SRAM GX 2 x 10, 10s, Type 2

    Front Derailleur

    SRAM X5, 2 x 10

    Crank

    KHS 2pc Forged, 38/24T, PF30, 30mm Alloy Spindle S: 170, M-L: 175

    Shifters

    SRAM SL500, 2 x 10s Trigger

    Cassette

    Sun Race, 11-36T, 10-speed

    Chain

    SRAM PC-1031

    Brakes

    Bengal Ares 3 Hydraulic Disc, 2 Piston, 180/160mm Rotors

    Type: Hydraulic Disc

    Brake Levers

    Bengal Ares 3 Hydraulic

    Wheels
    Rims

    WTB STP-I19 TCS, Disc, Double Wall, 29x28H, Tubeless Ready

    Spokes

    14G Stainless Black w/Alloy Nipples, 32X32

    Tires

    Maxxis Ikon EXO, 60TPI Folding, Tubeless Ready, 29X2.2
