Bike Comparison
    TR 1012020 KHS
    Recommended
    MSRP
    $1,199
    Where to Buy
    —
    $1

    At

    Category
    		General Road
    2.3
    Frame
    		Steel
    Fork
    		Steel
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Brakes
    		Mechanical Disc
    Motor
    Battery
    Groupset
    		Alivio, Sora
    Drivetrain
    		3 × 9
    Brand Site

    khsbicycles.com

    Summary

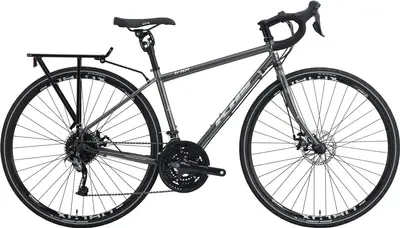

    		The KHS TR 101 is a steel frame general road bike with mid-range components and mechanical disc brakes.
    Similar Bikes
    Accessories
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    39 mph

    TR 101

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    TR 1012020 KHS
    Frame

    Reynolds 520, Double Butted CrMo

    Color: Gray

    Fork

    Full CrMo w/Disc & Rack Bosses

    Bottom Bracket

    Shimano Outboard Bearing

    Headset

    FSA Threadless 1-1/8", 15mm Top Cap

    Stem

    Alloy 3D Forged, Threadless 4 Bolt, 31.8mm, XS-S: 90mm, M-L: 110mm

    Handlebar

    FSA Vero Compact, Alloy Double Butted, 31.8, XS-M:42cm, L:44cm

    Saddle

    WTB Rocket V Sport

    Seatpost

    Alloy Suspension Micro-Adjust, 27.2x350

    Pedals

    n/a

    Groupset
    Rear Derailleur

    Shimano Alivio RD-M4000

    Front Derailleur

    Shimano Sora FD-R3030, 31.8 mm

    Crank

    Shimano Sora FCR-3030, 2-pc Forged, 50/39/30, XS: 165, S: 170, M-L: 175

    Shifters

    Shimano Sora STI, STR3030/3000

    Cassette

    Shimano HG200-9, 11-36T, 9-Speed

    Chain

    KMC X9 w/MissingLink

    Brakes

    Bengal MB700T Cable Disc, 160/160 Wave12

    Brake Levers

    Shimano Sora STI, STR3030/3000

    Wheels
    Rims

    Weinmann Alloy XC-180 Disc, Double Wall

    Spokes

    14g Stainless Black, 36x36

    Tires

    Kenda Kwick Journey 700x40C w/ K-Shield Anti-puncture, 60tpi
