    TEAM 29 FS2020 KHS
    Recommended
    MSRP
    $4,999
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    6.3
    Frame
    		Carbon
    		Fox Performance Float 32
    		Fox Float DPS Performance Elite
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		XT
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		100mm
    Rear Travel
    		100mm
    Brand Site

    khsbicycles.com

    Summary

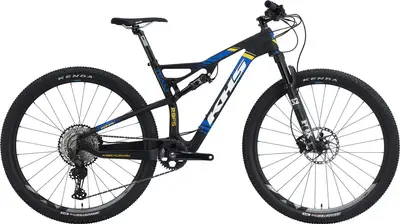

    		The KHS TEAM 29 FS is a 29″ carbon frame full suspension crosscountry bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    TEAM 29 FS

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    TEAM 29 FS2020 KHS
    Frame

    New 29" Full MSD Carbon, 100mm Travel, 1-1/8~ 1.5 Taper, 12x148mm Boost, PF92, 27.5 Plus Compatible

    BB Standard: BB86/BB92, Press Fit

    Color: Team

    Fork

    FOX Float 32, 29 Std/27.5+, Evol Air, Performance, 100mm, Fit4, 2-Pos Remote Lock Out, Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm x 110 QR Boost

    Travel: 100mm

    Spring Type: Air

    Shock

    FOX Float DPS, Performance Elite, 2-Pos Remote, Evol

    Travel: 100mm

    Bottom Bracket

    FSA PF92, BB-CFM92

    Headset

    FSA Orbit C-40-/48CF, N.42/48CF, 1-1/8"~1.5" Integrated, Carbon Cap

    Stem

    FSA Afterburner, 3D Forged, CNC, 4-Bolt, 6D, 31.8 S:70mm, M-L:80mm

    Handlebar

    FSA SLK CSI, Low Riser, 760mm x 18mm, 31.8mm

    Saddle

    WTB SL8 Pro, 142mm

    Seatpost

    Q2 Carbon, 31.6x350mm

    Type: Rigid

    Pedals

    n/a

    Grips

    Q2 Lock-on

    Groupset
    Rear Derailleur

    Shimano New XT RD-M8100

    Front Derailleur

    n/a

    Crank

    Shimano New XT M8100, 2pc Hollowtech II, 34T, Boost, PF92, S:170, M-L:175

    Shifters

    Shimano New XT, SL-M8100, 12s, Trigger, Right Only, I-Spec II

    Cassette

    Shimano CS-M7100, 10-51T, 12-Speed

    Chain

    Shimano CN-M7100

    Brakes

    Shimano MT501, Hydraulic Disc, Servo Wave, 180/160mm, Rotors, RT64 Center Lock

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano MT501, Servo Wave w/ I-Spec II

    Wheels
    Rims

    Shimano XT WH-M8100 12S, 29" Disc, Straight Pull w/ 15mm x 110mm Boost Ft & 12mm x 148mm Boost RR Thru-Axle, Center Lock, Tubeless Ready

    Spokes

    Shimano XT WH-M8100, Wheel Set

    Tires

    Kenda Booster Pro, 120TPI Folding, Tubeless Ready, 29x2.2
