    TEAM 292016 KHS
    Recommended
    MSRP
    $5,599
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    7.1
    Frame
    		Carbon
    		Fox Factory Float 32
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		SRAM Guide RSC Hydraulic Disc
    		XX, XX1
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site
    Summary

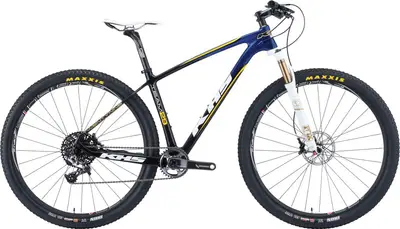

    		The KHS TEAM 29 is a 29″ carbon frame hardtail crosscountry bike with ultra high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    TEAM 29

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    TEAM 292016 KHS
    Frame

    KHS Full MSD Carbon 29er w/1.5 Taper Headtube, Disc Only, Internal Cable Routing

    BB Standard: PF30, Press Fit

    Color: Team

    Fork

    Fox 32 Float Factory 29”, FIT-4 CTD Remote w/Kashima, 100mm, Air, External Rebound, Remote CTD Low Speed Compression, 1.5 Taper, 15mm Thru Axle

    Travel: 100mm

    Spring Type: Air

    Shock

    N/A

    Bottom Bracket

    SRAM PF30

    Headset

    FSA Orbit C-40-CF-ACB, N.42CF, 1-1/8”~1.5” Integrated, Carbon Cap

    Stem

    Ritchey 4-Axis 44 WCS, 6D, 31.8, S: 80mm, M: 90mm, L:100mm

    Handlebar

    Ritchey 2X WCS Carbon, Flat Rise, 31.8x710mm

    Saddle

    Velo 1557 Ultra Light w/Carbon Base & Ti-Rail

    Seatpost

    Q2 Team Full Carbon, 31.6x350mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    SRAM XX 1, 11s X-Horizon, Type 2

    Front Derailleur

    N/A

    Crank

    SRAM XX1, Carbon W/Forged Alloy Spider, PF30, 34T, S: 170, M-L: 175

    Shifters

    SRAM XX1, 11s, Trigger, Right Only

    Cassette

    SRAM XG-1150, 10-42T, 11-Speed

    Chain

    SRAM PC-XX1

    Brakes

    SRAM Guide RSC Hydraulic Disc, 4 Piston, Tool Free Reach & Pad Contact Adj., 160mm Rotors

    Type: SRAM Guide RSC Hydraulic Disc

    Brake Levers

    SRAM Guide RSC, Match Maker X

    Wheels
    Rims

    DT XR 1501 Spline Wheel SET, 29” Disc, Straight Pull w/ 15mm Thru-Axle, Tubeless Ready

    Spokes

    DT XR 1501 Spline, Wheelset

    Tires

    Maxxis Ikon 3C Maxx Speed, 120TPI Folding, Triple Compound, Tubeless Ready, 29X2.2
