 | Recommended |
|---|
MSRP | $5,799 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail, E-Bike | |
| Aluminum | ||
Fork | Fox Rhythm Float 34 | |
Shock | Fox Float DPS Performance | |
Wheels | Aluminum | |
| 27.5″ | ||
Brakes | Hydraulic Disc | |
| Shimano 250W 70Nm mid-drive | ||
| Shimano 504Wh | ||
Groupset | XT, SLX | |
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 150mm | |
Rear Travel | 140mm | |
Brand Site | ||

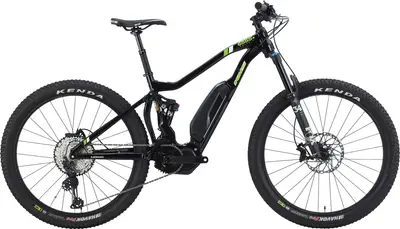

Summary | The KHS SixFifty 6555+E is a 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components. | |
Frame | E-FSS 650B 140mm Plus, Alloy 6061 w/Custom Formed Dbl.Butted TT & DT, 1.5 Taper, 12 x 148 Boost Rear Axle, w/ Replaceable Derailleur Hanger Color: Black | |
|---|---|---|
Fork | FOX Float 34, 29 Std/27.5+ Evol Air, Rhythm, 150mm, Grip Sweep Adj., Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm x 110 QR Boost | |
Shock | FOX Float DPS, Performance, 3-Pos, No.Evol w/LV Eyelet | |
Headset | FSA Orbit 1.5E, Zero Stack, 1 1/8"~1.5 | |
Stem | Kore XCD, Alloy 3D Forged, Threadless 4-bolt, 31.8 S: 60mm, M-L: 70mm, XL: 80mm | |
Handlebar | Kore XCD 1 Riser, 760 x 18mm, 31.8mm | |
Saddle | WTB Volt Sport | |
Seatpost | KS Suspension Rage-I, Integra w/Remote, Travel Adj | |
Pedals | n/a | |
Grips | Q2 Lock-on |
Rear Derailleur | Shimano New XT RD-M8100 | |
|---|---|---|
Front Derailleur | n/a | |
Crank | Samox Alloy Forged, 34T | |
Shifters | Shimano New SLX, SL-M7100, 12s, Trigger, Right Only | |
Cassette | Shimano CS-M7100, 10-51T, 12 Speed | |
Chain | Shimano CN-M7100 | |
Brakes | Shimano MT520 4-Piston, Hydraulic Disc, Servo Wave, 203/180mm, Rotors= RT64 Center Lock | |
Brake Levers | Shimano MT501, Servo Wave |
Rims | WTB Scraper i35 TCS Alloy Plus Disc, 27.5, Double Wall, 28H, Tubeless Ready | |
|---|---|---|
Spokes | 14G Stainless Black, 28x28 | |
Tires | Kenda Havok Pro EMC, 27.5 x 2.6. 120TPI Folding, Tubeless Ready |
Motor | Shimano E8000A Motor, 36V x 250W, 70Nm, Class I | |
|---|---|---|
Battery | Shimano Lithium 36V x 14Ah, 504Wh |
