    SAGUARO2016 KHS
    Recommended
    MSRP
    $3,399
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    6.3
    Frame
    		Carbon
    		Fox Performance Float 32
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		SRAM Guide R Hydraulic Disc
    		GX
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site
    Summary

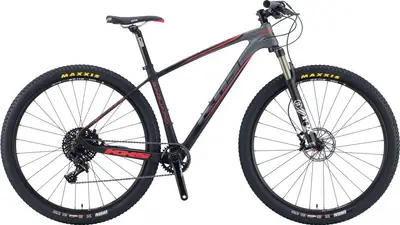

    		The KHS SAGUARO is a 29″ carbon frame hardtail crosscountry bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    SAGUARO

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    SAGUARO2016 KHS
    Frame

    KHS Full MSD Carbon 29er w/1.5 Taper Headtube, Disc Only, Internal Cable Routing

    BB Standard: PF30, Press Fit

    Color: Matte Gray / Black

    Fork

    Fox 32 Float Performance, 29”, CTD Fit4 CTD Remote, 100mm, Air, External Rebound, Remote CTD Low Speed Compression, 1.5 Taper, 15mm Thru Axle

    Travel: 100mm

    Spring Type: Air

    Shock

    N/A

    Bottom Bracket

    SRAM PF30

    Headset

    FSA Orbit C-40-CF-ACB, N.42CF, 1-1/8”~1.5” Integrated, Carbon Cap

    Stem

    Kore XCD, Alloy 3D Forged, Threadless 4-bolt, 31.8, S: 80mm, M-L: 90mm

    Handlebar

    Kore XCD-Flat Top, 31.8x710mm

    Saddle

    WTB Volt Comp

    Seatpost

    Q2 Carbon, 31.6X350mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    SRAM GX 1, 11s X-Horizon, Type 2

    Front Derailleur

    N/A

    Crank

    SRAM GX 1400, OCT Hollow Forged, X-Sync, 2 pc., PF30, 34T, S: 170, M-L: 175

    Shifters

    SRAM GX 1, 11s Trigger, Right Only

    Cassette

    SRAM XG-1150, 10-42T, 11-speed

    Chain

    SRAM PC-1130

    Brakes

    SRAM Guide R Hydraulic Disc, 4 Piston, Tool Free Reach Adj., 160mm Rotors

    Type: SRAM Guide R Hydraulic Disc

    Brake Levers

    SRAM Guide R, Matchmaker X

    Wheels
    Rims

    WTB STP-I19 TCS, Disc, Double Wall, 29x28H, Tubeless Ready

    Spokes

    14/15g Black Stainless, w/Alloy Nipples 28x28

    Tires

    Maxxis Ikon 3C Maxx Speed, 120TPI Folding, Triple Compound, Tubeless Ready, 29X2.2
