    RAPTOR+2024 KHS
    Recommended
    MSRP
    $439
    Where to Buy
    —
    $1

    At

    Category
    		General Youth
    2.0
    Frame
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		20″
    		Rim
    		Tourney
    Drivetrain
    		1 × 7
    Brand Site

    khsbicycles.com

    Summary

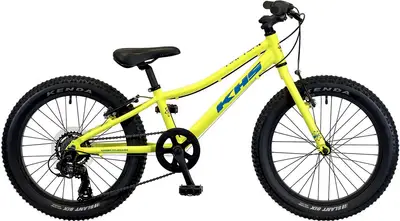

    		The KHS RAPTOR+ is a 20″ aluminum frame general youth bike with mid-range components and rim brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    15 mph

    RAPTOR+

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    RAPTOR+2024 KHS
    Frame

    6061 Aluminum Plus w/Custom Formed T/T & Replaceable Derailleur Hanger

    Color: Neon Yellow; Girls: Berry

    Fork

    Rigid Straight Leg

    Bottom Bracket

    Cartridge Bearing, 73x127.5mm

    Headset

    Threadless 1-1/8”

    Stem

    Aluminum Threadless 4-bolt, 10 Degree, 60mm

    Handlebar

    Aluminum 30mm Rise, 560mm

    Saddle

    Ultracycle Junior

    Seatpost

    Aluminum Micro-Adjust, 27.2x250mm

    Type: Rigid

    Pedals

    MTB w/ Boron Axle

    Grips

    Soft Kraton

    Groupset
    Rear Derailleur

    Shimano Tourney RD-TY300D

    Front Derailleur

    n/a

    Crank

    Aluminum 3-pc 36T w/Double Chainguard, 140mm

    Shifters

    Shimano Revo

    Cassette

    14-34T, 7-Speed

    Chain

    KMC Z8.3

    Brakes

    Aluminum Linear Pull

    Type: Rim

    Brake Levers

    All Aluminum Linear Pull

    Wheels
    Rims

    Aluminum, 20” Plus, 32H

    Spokes

    14G Black, 32x32

    Front Hub

    Steel Nutted

    Rear Hub

    Steel Nutted

    Tires

    Kenda El Capo, 20 x 2.60”, Knobby
