    PRESCOTT2020 KHS
    Recommended
    MSRP
    $3,899
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    5.8
    Frame
    		Carbon
    		Fox Rhythm Float 32
    		X-Fusion
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		SLX
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		100mm
    Rear Travel
    		100mm
    Brand Site

    khsbicycles.com

    Summary

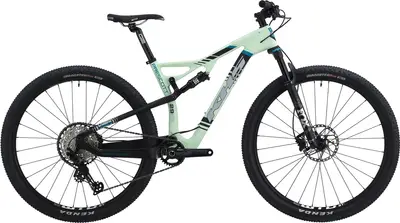

    		The KHS PRESCOTT is a 29″ carbon frame full suspension crosscountry bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    26 mph

    PRESCOTT

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    PRESCOTT2020 KHS
    Frame

    29" Full MSD Carbon, 100mm Travel, 1-1/8~ 1.5 Taper, 12x148mm Boost, PF92, 27.5 Plus Compatible

    BB Standard: BB86/BB92, Press Fit

    Color: Matte Mint Miami Green

    Fork

    FOX Float 32, 29 Std/27.5+ Evol Air, Rhythm, 100mm, Grip Sweep Adj., Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm x 110 QR Boost

    Travel: 100mm

    Spring Type: Air

    Shock

    X-Fusion O2 Pro RL Ext Rebound, Lockout

    Travel: 100mm

    Bottom Bracket

    SR Press Fit

    Headset

    FSA Orbit C-40-CF-ACB, N.42/CF/ACB, 1-1/8"~1.5" Integrated

    Stem

    FSA V-Drive, 3D Forged, 4-bolt, 6 Degree, 31.8, S:70mm, M-L:80mm

    Handlebar

    FSA Comet Low Riser, 31.8, 720x15mm

    Saddle

    WTB Volt Comp

    Seatpost

    Q2 Carbon, 31.6x350mm

    Type: Rigid

    Pedals

    n/a

    Grips

    Q2 Lock-on

    Groupset
    Rear Derailleur

    Shimano New SLX RD-M7100

    Front Derailleur

    n/a

    Crank

    SR Zeron, 2-pc, Boost, 30T Zig-Zag

    Shifters

    Shimano New SLX, SL-M7100, 12-Speed, Trigger, Right Only

    Cassette

    Shimano CS-M7100, 10-51T, 12-Speed

    Chain

    Shimano CN-M7100

    Brakes

    Shimano MT501, Hydraulic Disc, Servo Wave, 180/160mm, Rotors= RT64 CenterLock

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano MT501, Servo Wave

    Wheels
    Rims

    WTB ST-I25 TCS, Disc, Double Wall, 29x28H, Tubeless Ready

    Spokes

    14/15g Black Stainless, w/Alloy Nipples 28x28

    Tires

    Kenda Booster Pro, 120TPI Folding, Tubeless Ready, 29x2.2
