    PRESCOTT2018 KHS
    Recommended
    MSRP
    $3,749
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    5.8
    Frame
    		Carbon
    		Fox Rhythm Float 32
    		X-Fusion
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Deore Hydraulic Disc
    		SLX
    Drivetrain
    		1 × 11
    Suspension
    		Full
    Front Travel
    		100mm
    Rear Travel
    		100mm
    Brand Site
    Summary

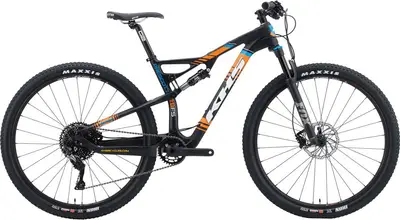

    		The KHS PRESCOTT is a 29″ carbon frame full suspension crosscountry bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    PRESCOTT

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    PRESCOTT2018 KHS
    Frame

    New 29" Full MSD Carbon, 100mm Travel, 1-1/8~ 1.5 Taper, 12x148 Boost, PF92, 27.5 Plus Compatible

    BB Standard: BB86/BB92, Press Fit

    Color: Matte Black

    Fork

    FOX Float 32, 29 Std/27.5+ Evol Air, Rhythm, 100mm, Grip 3-Pos Micro Adj., Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm X 110 QR Boost

    Travel: 100mm

    Spring Type: Air

    Shock

    X-Fusion O2 Pro RL Ext Rebound, Lockout

    Travel: 100mm

    Bottom Bracket

    PF92

    Headset

    FSA Orbit C-40-CF-ACB, N.42/CF/ACB, 1-1/8"~1.5" Integrated

    Stem

    Kore XCD, Alloy 3D Forged, Threadless 4-bolt, 31.8, S: 70mm, M-L: 80mm

    Handlebar

    Kore XCD-Flat Top, 31.8 x 720mm

    Saddle

    WTB Volt Comp

    Seatpost

    Q2 Carbon, 31.6X350mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    Shimano SLX RD-M7000

    Front Derailleur

    n/a

    Crank

    Samox 2pc Forged, PF92, Narrow Wide 32T, Boost, S:170,M-L 175

    Shifters

    Shimano SLX, SL-M7000, 11s, Trigger, Right Only, I-Spec II

    Cassette

    Shimano SLX CS-M7000, 11-46T, 11-speed

    Chain

    KMC X11EL-1 w/Missing Link

    Brakes

    Shimano MT500, Hydraulic Disc, Servo Wave, 180/160mm, Wave 12 Rotors

    Type: Shimano Deore Hydraulic Disc

    Brake Levers

    Shimano MT500, Servo Wave w/ I-Spec II

    Wheels
    Rims

    WTB STP-i23 TCS, Disc, Double Wall, 29x28H, Tubeless Ready

    Spokes

    14/15g Black Stainless, w/Alloy Nipples 28x28

    Tires

    Maxxis Ikon TR 3C Maxx Speed, 120TPI Folding, Triple Compound, Tubeless Ready, 29X2.2
