    PRESCOTT2016 KHS
    Recommended
    MSRP
    $4,199
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    6.0
    Frame
    		Carbon
    		RockShox Reba
    		RockShox Monarch RT3
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		SRAM Guide RSC Hydraulic Disc
    		GX
    Drivetrain
    		1 × 11
    Suspension
    		Full
    Front Travel
    		100mm
    Rear Travel
    		100mm
    Brand Site
    Summary

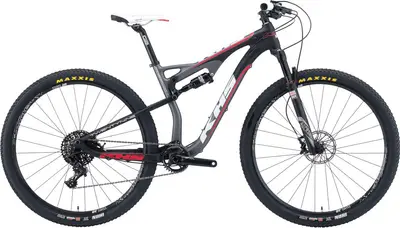

    		The KHS PRESCOTT is a 29″ carbon frame full suspension crosscountry bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    PRESCOTT

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    PRESCOTT2016 KHS
    Frame

    29” Full MSD Carbon, 100mm Travel, 1.5 taper, 12x142

    BB Standard: PF30, Press Fit

    Color: Matte Black / Matte Gray

    Fork

    29” Rock Shox Reba RLT 100mm, Solo Air, Motion Control, External Rebound, External Floodgate, Compression Adj to ‘Lock’, 1.5 Taper, 15Q

    Travel: 100mm

    Spring Type: Air

    Shock

    RockShox Monarch RT3 Solo Air with 3 Pos. Flood Gate Switch, Rebound adjust

    Travel: 100mm

    Bottom Bracket

    SRAM PF30

    Headset

    FSA Orbit C-40-48CF, N.42/48CF, 1-1/8”~1.5” Integrated, Carbon Cap

    Stem

    FSA Gossamer, 3-D Forged Alloy, 31.8, S:70mm, M: 80mm, L: 90mm

    Handlebar

    FSA V-Drive Low Rise, 740x15mm, 31.8mm

    Saddle

    WTB Volt Comp

    Seatpost

    Q2 Carbon, 30.9X350mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    SRAM GX 1, 11s X-Horizon, Type 2

    Front Derailleur

    N/A

    Crank

    SRAM GX 1400, OCT Hollow Forged, X-Sync, 2 pc., PF30, 32T, S:170, M-L: 175

    Shifters

    SRAM GX 1, 11s Trigger, Right Only

    Cassette

    SRAM XG-1150, 10-42T, 11-speed

    Chain

    SRAM PC-1130

    Brakes

    SRAM Guide RSC Hydraulic Disc, 4 Piston, Tool Free Reach & Pad Contact Adj., 160mm Rotors

    Type: SRAM Guide RSC Hydraulic Disc

    Brake Levers

    SRAM Guide RSC, Match Maker X

    Wheels
    Rims

    DT X1900 Spline Wheel Set, 29” Disc, Straight Pull w/ 15mm FT & 12mm RR Thru-Axle, Tubeless Ready

    Spokes

    DT X1900 Spline Wheelset

    Tires

    Maxxis Ikon 3C Maxx Speed, 120TPI Folding, Triple Compound, Tubeless Ready, 29X2.2
