    PRESCOTT2014 KHS
    Recommended
    MSRP
    $3,749
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    6.0
    Frame
    		Carbon
    		RockShox Reba
    		RockShox Monarch RT3
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano SLX Hydraulic Disc
    		XT, SLX
    Drivetrain
    		2 × 10
    Suspension
    		Full
    Front Travel
    		100mm
    Rear Travel
    		100mm
    Brand Site
    Summary

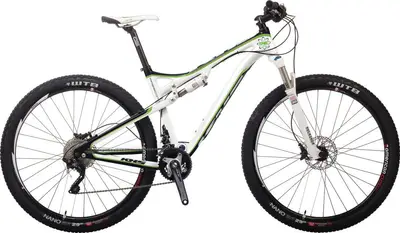

    		The KHS PRESCOTT is a 29″ carbon frame full suspension crosscountry bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    PRESCOTT

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    PRESCOTT2014 KHS
    Frame

    29" Carbon Front w/AL 6061 Horst bearing linkage RR, 100mm Travel, 1.5 taper

    BB Standard: BB86/BB92, Press Fit

    Color: Black / Sublime/ White

    Fork

    29" Rock Shox Reba RLT 100mm, Solo Air, Motion Control, Extrnl Rbnd, Extrnl Fldgate, Cmprsn adj to 'Lock', 1.5 Taper, 15mm

    Travel: 100mm

    Spring Type: Air

    Shock

    RockShox Monarch RT3 Solo air with 3 Pos. flood gate switch, rebound adj.

    Travel: 100mm

    Bottom Bracket

    Shimano Press-In BB92

    Headset

    FSA Orbit C-40-ACB, N.42/ACB, 1-1/8"~1.5" Integrated

    Stem

    Truvativ Stylo Team T20, 31.8 S:75mm,M:90mm,L:100mm

    Handlebar

    Truvativ Noir T20, Carbon, 680x31.8

    Saddle

    WTB Volt Comp

    Seatpost

    Q2 Carbon, 30.9X350mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    Shimano XT, Shadow Plus

    Front Derailleur

    Shimano SLX

    Crank

    Shimano SLX, Hollowtech II, 38/24

    Shifters

    Shimano SLX, I-Spec

    Cassette

    Shimano Deore CS HG62-10, 11-36T, 10-speed

    Chain

    Shimano SLX

    Brakes

    Shimano SLX Hydraulic, 160mm Rotors

    Type: Shimano SLX Hydraulic Disc

    Brake Levers

    Shimano SLX Hydraulic, w/I-Spec

    Wheels
    Rims

    American Classic Terrain 29 Disc, 32H, 15mm Ft

    Spokes

    American Classic Terrain 29, 32H

    Tires

    WTB Nano Race, 29X2.1, 60 TPI, Folding
