    EXTENDED 2.02022 KHS
    Recommended
    MSRP
    $2,199
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry, E-Bike
    2.8
    Frame
    		Aluminum
    		Suntour XCE
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Drum
    		Bafang 500W 45Nm hub-drive
    		504Wh
    		Altus
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		80mm
    Brand Site

    khsbicycles.com

    Summary

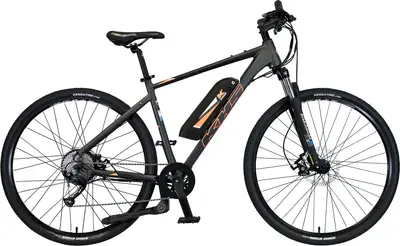

    		The KHS EXTENDED 2.0 is a 700c aluminum frame hardtail crosscountry e-bike with modest components and drum brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    EXTENDED 2.0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    EXTENDED 2.02022 KHS
    Frame

    6061 Aluminum w/Custom Formed T/T w/C/S Disc Mount, w/ Replaceable Derailleur Hanger

    Color: Matte Dark Gray

    Fork

    SR XCE28, 80mm

    Travel: 80mm

    Spring Type: Coil

    Shock

    n/a

    Headset

    Threadless 1-1/8”, Zero Stack

    Stem

    Aluminum 3D Forged, Threadless 4-bolt, 7-degree, 31.8mm

    Handlebar

    Aluminum, 31.8mm, 680x30mm

    Saddle

    KHS Sport Dual Density

    Seatpost

    Aluminum Micro-Adjust, 27.2x350mm

    Type: Rigid

    Pedals

    Resin ATB Platform w/DU Bearings

    Grips

    KHS Sport, Dual Compound

    Groupset
    Rear Derailleur

    Shimano Altus M2000

    Front Derailleur

    n/a

    Crank

    Samox Forged, 36T w/Guard, 170mm

    Shifters

    Shimano Altus M2000 Trigger

    Cassette

    Shimano CS-HG201-9, 11-36, 9-Speed

    Chain

    KMC X9

    Brakes

    Bengal Cable Disc, MB606, 160mm Rotors Wave 12 w/ABS System

    Type: Drum

    Brake Levers

    Bengal Aluminum Linear Pull w/Sensor Control

    Wheels
    Rims

    Weinmann XTB26 Aluminum, 700c x 36H, Double wall

    Spokes

    14G Black, 36x36

    Front Hub

    Aluminum QR

    Rear Hub

    Bafang, Drum Motor

    Tires

    Kenda Kwick Bitumen, 700 x 40c, 30TPI

    Electric Components
    Motor

    Bafang RMG020-500DC, 48V x 500W, 45Nm, Class II

    Battery

    Lithium 48V x 10.5Ah, 504Wh
