Bike Comparison
    ENVOY 2002020 KHS
    Recommended
    MSRP
    $1,699
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    2.6
    Frame
    		Steel
    Fork
    		Steel
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Brakes
    		Rim
    Motor
    		Bafang 500W 45Nm hub-drive
    Battery
    		504Wh
    Groupset
    		Altus, Shimano
    Drivetrain
    		1 × 8
    Brand Site

    khsbicycles.com

    Summary

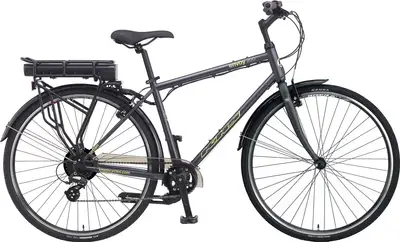

    		The KHS ENVOY 200 is a 700c steel frame commuter e-bike with modest components and rim brakes.
    Similar Bikes
    Accessories
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    ENVOY 200

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    ENVOY 2002020 KHS
    Frame

    4130 Double Butted CrMo Tubing w/Carrier Bosses

    Color: Matte Dark Gray

    Fork

    Full CrMo Unicrown, Low-rider and Fender Bosses w/Disc, Straight Blade

    Headset

    FSA Threadless 1-1/8, Zero Stack

    Stem

    Alloy Threadless, 4-Bolt, 25mm

    Handlebar

    Alloy Trekking, 30mm x 630mm, 31.8mm

    Saddle

    KHS Ultra Comfort

    Seatpost

    Alloy Micro-adjust , 27.2x350mm

    Pedals

    Wellgo Platform w/Non-slip Tread, DU Bearings

    Grips

    Velo Dual density

    Groupset
    Rear Derailleur

    Shimano Altus M310

    Front Derailleur

    n/a

    Crank

    Samox Forged, 36T

    Shifters

    Shimano Twist

    Cassette

    Shimano CS-HG31-8, 11-32T, 8-Speed

    Chain

    KMC X8

    Brakes

    Tektro Alloy Linear Pull

    Brake Levers

    Bengal Alloy Linear Pull Trekking, 3 Finger, w/ Sensor Control

    Wheels
    Rims

    Weinmann ZAC2000, 700x36H, Double Wall w/CNC Sidewall

    Spokes

    14G Stainless Black, 36x36

    Tires

    Kenda Kwick Journey, 700x35c w/K-Shield Anti-puncture,60TPI

    Electric Components
    Motor

    Bafang RMG020-500DC, 48V x 500W, 45Nm, Class II

    Battery

    Lithium 48V x 10.5Ah, 504Wh
