MSRP | $5,299 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Downhill | |
Frame | ||
| Fox Performance Elite Float 40 | ||
| Fox Float X2 Performance | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| Shimano Zee Hydraulic Disc | ||
| Zee | ||
Drivetrain | 1 × 10 | |
Suspension | Full | |
Front Travel | 20mm | |
Rear Travel | 210mm | |
Brand Site | ||

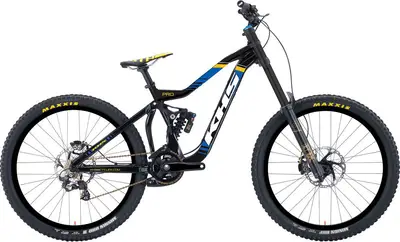

Summary | The KHS DH 650 PRO is a 27.5″ full suspension downhill bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | KHS 650B F.A.S.T. DH Frame w/ 8.3” travel, 1.5HT, 83mm BB, ISCG05 mount Color: Team | |
|---|---|---|
Fork | Fox 40 Float Performance Elite, 27.5, Fit 4, Evol, Low Speed Compression, Rebound Adj, 20mm Travel: 20mm Spring Type: Air | |
Shock | Fox Float X2 Air, External Rebound & Compression adjust Travel: 210mm | |
Bottom Bracket | Shimano Zee | |
Headset | FSA Orbit 1.5E, Zero Stack, 1 1/8”~1.5 | |
Stem | Kore Torsion Direct Mount, 50mm | |
Handlebar | Kore OCD, 35x800mm, 31.8mm | |
Saddle | WTB High Tail/KHS Team Graphics | |
Seatpost | Kind Shock Ether, 31.6x400mm Type: Rigid | |
Pedals | N/A | |
Grips | Q2 lock-on |
Rear Derailleur | Shimano Zee | |
|---|---|---|
Front Derailleur | N/A | |
Crank | Shimano Zee, 38T, w/MRP G3 Chain Guide System, S-L: 165, XL: 170 | |
Shifters | Shimano Zee, Right only | |
Cassette | Shimano CS-5700, 11-25T, 10-speed | |
Chain | Shimano CN-HG95, 10-Speed | |
Chain Guide | MRP G3 | |
Brakes | Shimano Zee, F: 203mm Rotors w/metal fin brake pads Type: Shimano Zee Hydraulic Disc | |
Brake Levers | Shimano Zee |
Rims | WTB STP-I25 TCS, Disc, Double Wall, 27.5x32H, Tubeless Ready | |
|---|---|---|
Spokes | 14G Black, 32x32 | |
Front Hub | Formula Disc, 20mm thru-axle front, 150x12mm rear | |
Rear Hub | Formula Disc, 20mm thru-axle front, 150x12mm rear | |
Tires | Maxxis Minion DHF, 650B x 2.5 Front, DHR, 2.4 Rear, DH Casing |
