Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals
Bike Comparison
    CX5002016 KHS
    Recommended
    MSRP
    $3,099
    Where to Buy
    —
    $1

    At

    Category
    		Cyclocross
    5.2
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		105, Tiagra
    Drivetrain
    		2 × 11
    Brand Site
    Summary

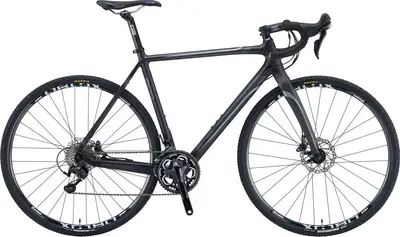

    		The KHS CX500 is a carbon frame cyclocross bike with upper mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    36 mph

    CX500

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CX5002016 KHS
    Frame

    KHS Full MSD Carbon CX Design, T700 High Modulus Carbon, 1.5 Taper, Disc

    Color: Matte Black

    Fork

    Full T700 Light Carbon CX Disc, 1.5 Taper

    Bottom Bracket

    Shimano Outboard Bearing

    Headset

    FSA Orbit C40-ACB, N.42/ACB, 1-1/8”~1.5” Integrated Alloy Cap

    Stem

    FSA Omega, 31.8mm, XS-S: 90mm, M-L: 100mm

    Handlebar

    FSA Omega Compact, 31.8mm, XS: 40cm, S-M: 42cm, L: 44cm

    Saddle

    KHS Sport Road, CrMo Rail

    Seatpost

    Q2 Carbon, 31.6x350mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    SShimano 105, RD-5800

    Front Derailleur

    Shimano 105, FD-5800, 34.9mm

    Crank

    Shimano FC-RS500, 46/36T, 11s, 2-pc, XS: 170, S-M: 172.5, L: 175

    Shifters

    Shimano Hydraulic STI, ST-RS685, 11-Speed

    Cassette

    Shimano CS-5800, 11-32T, 11-speed

    Chain

    KMC X11L w/missing Link

    Brakes

    Shimano BR-RS785 Hydraulic Disc, 160mm Rotors

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano Hydraulic STI, ST-RS685, 11-Speed

    Wheels
    Rims

    Weinmann XC-180,Alloy Doublewall, 700c

    Spokes

    14G SS Black, 28HX32 w/Alloy Nipples

    Tires

    Maxxis Mud Wrestler, M209P, 700X33c, 60TPI, Folding
