    BNT 292016 KHS
    Recommended
    MSRP
    $1,969
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    Frame
    		Steel
    		Manitou
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Deore Hydraulic Disc
    		XT, Deore
    Drivetrain
    		2 × 10
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site
    Summary

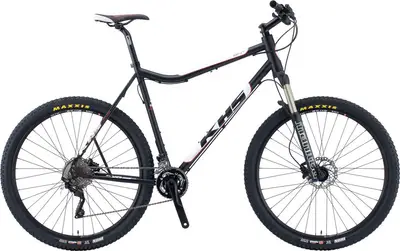

    		The KHS BNT 29 is a 29″ steel frame hardtail trail bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    BNT 29

    Highest gear

    (descending)

    Geometry
    Specs
    BNT 292016 KHS
    Frame

    Reynolds 520 CrMo Double Butted,T/T 38.1mm, D/T 40mm, S/T 32.4mm

    Color: Matte Black

    Fork

    29” Manitou Marvel Comp TS AIR,120mm, Absolute+ Dampening, Ext Rebound Adj & Compression Adj to Lock, 1.5 Taper Alloy Steerer, 15mm dropout

    Travel: 120mm

    Spring Type: Air

    Shock

    N/A

    Bottom Bracket

    Outboard Bearing

    Headset

    FSA 2 (I/I), Orbit E1.5, Zero Stack, 1-1/8/1.5

    Stem

    Kore XCD,

    Handlebar

    Kore XCD 1 Riser, 720 x 15mm

    Saddle

    WTB Volt Comp

    Seatpost

    Q2 Alloy Micro-Adjust 29.8x400mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    Shimano XT RD-M786 Shadow Plus

    Front Derailleur

    Shimano Deore FD-M616, 34.9

    Crank

    KHS 2pc Forged, 200mm, w/Outboard Bearings, 38/24, w/Alloy Chainrings

    Shifters

    Shimano Deore SL-M610 I-Spec

    Cassette

    Shimano Deore CS-HG50-10, 11-36T, 10-speed

    Chain

    KMC X10 w/Missing Link

    Brakes

    Shimano M506 Hydraulic Disc, 160mm Rotors

    Type: Shimano Deore Hydraulic Disc

    Brake Levers

    Shimano New M506, Servo Wave

    Wheels
    Rims

    WTB STP-I19 TCS, Disc, Double Wall, 29x36H, Tubeless Ready

    Spokes

    14G Black w/Alloy Nipples, 36X36

    Tires

    Maxxis Ikon 3C Maxx Speed, 120TPI Folding, Triple Compound, Tubeless Ready, 29x2.35
