    55002022 KHS
    Recommended
    MSRP
    $2,959
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    4.6
    Frame
    		Aluminum
    		Suntour XCR Air
    		X-Fusion
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Hydraulic Disc
    		Deore
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		130mm
    Brand Site

    khsbicycles.com

    Summary

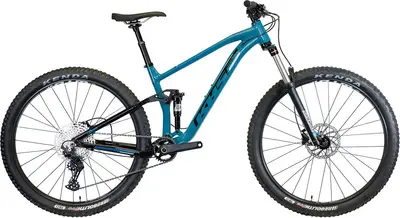

    		The KHS 5500 is a 27.5″ aluminum frame full suspension trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    5500

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    55002022 KHS
    Frame

    4-Bar Horst Link 29/650B+ 130mm, 6061 Aluminum w/Custom Formed Double Butted T/T & D/T, 1.5 Taper, 12 x 148 Rear Axle, w/Replaceable Derailleur Hanger, Internal Cable

    Color: Deep Teal

    Fork

    SR XCR34 Boost, LOR Air, S:27.5, M-XL:29”, 140mm, 34mm Stanchions, Aluminum Steerer, Magnesium Lowers, Hydraulic Damp, External rebound, Lock-Out, 1.5 Taper, 15QR x 110mm

    Travel: 140mm

    Spring Type: Air

    Shock

    X-Fusion 02 Pro RL, Air, Ext Rebound, Lock-Out

    Travel: 130mm

    Bottom Bracket

    SR Outboard Cartridge Bearing

    Headset

    FSA Orbit 1.5E, Zero Stack, 1-1/8”~1.5

    Stem

    35mm Aluminum 3D Forged, Threadless 4-bolt

    Handlebar

    Aluminum 35mm Riser, 780 x 15mm

    Saddle

    WTB Volt Medium SL

    Seatpost

    Kind Shock Exa-Form KSP-900-i, Integra w/Remote, Travel Adjust, 31.6mm

    Type: Dropper

    Pedals

    n/a

    Grips

    Q2 Lock-on

    Groupset
    Rear Derailleur

    Shimano Deore, RD-M6100

    Front Derailleur

    n/a

    Crank

    SR Zeron, 2-pc, Boost, 30T Zig/Zag, S:170, M-XL:175

    Shifters

    Shimano Deore, SL-M6100, 12s, Trigger, Right Only

    Cassette

    Shimano CS-M6100, 10-51T, 12-Speed

    Chain

    Shimano CN-M6100

    Brakes

    Shimano MT200 Hydraulic Disc, 180/160mm Rotors Wave 12

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano MT200

    Wheels
    Rims

    WTB ST=S:i35, M-XL:i29 TCS, Disc, Double Wall, 32H, Tubeless-Ready

    Spokes

    14G Stainless Black w/Aluminum Nipples, 32x32

    Front Hub

    Formula Sealed Bearing Aluminum Disc, 15mm, 110mm Boost

    Rear Hub

    Formula Sealed Bearing Aluminum Disc, Cassette, 12 x 148mm Boost

    Tires

    Kenda Regolith Pro, S:27.5 x 2.6”, M-XL:29 x 2.4”, 120TPI, Folding, Tubeless-Ready
