    55002014 KHS
    Recommended
    MSRP
    $2,499
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    4.9
    Frame
    		Aluminum
    		X-Fusion VELVET
    		X-Fusion
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Hydraulic Disc
    		Deore
    Drivetrain
    		2 × 10
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		140mm
    Brand Site
    Summary

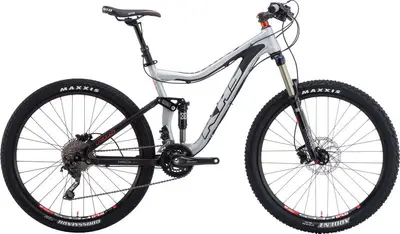

    		The KHS 5500 is a 27.5″ aluminum frame full suspension trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    5500

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    55002014 KHS
    Frame

    650B 140mm, Alloy 6061 w/Custom Formed Dbl.Butted TT & DT, 1.5 Taper, 12 x 142 rear axle, w/replaceable derailleur hanger

    Color: Matte Hiho Silver / Black

    Fork

    X-Fusion Velvet RL, 140mm, Alloy 1-1/8-1.5 Tapered Steerer, Hydraulic Dampening, Rebaound Adj, Hydraulic Lockout, 15mm

    Travel: 140mm

    Spring Type: Air

    Shock

    X-Fusion 02RL, air w/hydraulic dampening, Rebound Adj & Lock Out

    Travel: 140mm

    Bottom Bracket

    Shimano Outboard Bearing

    Headset

    FSA Orbit 1.5E Zero Stack, 1 1/8" x 1.5 Taper

    Stem

    KHS Alloy 3D Forged S:80mm,M:90mm,L:100mm,XL:110mm

    Handlebar

    Alloy,31.8 700X15mm

    Saddle

    WTB Volt Sport

    Seatpost

    Kind Shock E-Ten w/Remote, Travel Adjust 31.6

    Type: Dropper

    Pedals

    N/A

    Groupset
    Rear Derailleur

    Shimano New Deore Shadow

    Front Derailleur

    Shimano New Deore

    Crank

    Shimano New Deore, 38/24T

    Shifters

    Shimano New Deore

    Cassette

    Shimano Deore CS HG62-10, 11-36T, 10-speed

    Chain

    KMC X10

    Brakes

    Shimano BR-M395, Hydraulic Disc, 180 mm Ft/160mm RR Rotors

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BR-M395

    Wheels
    Rims

    DT #533D, 650B

    Spokes

    14G/15G Dbl Butted Black w/alloy nipples, 32X32

    Tires

    Maxxis Ardent 650B x 2.25 Ft, Crossmark 650B x 2.1 Rr, Folding
