    5002025 KHS
    Recommended
    MSRP
    $1,299
    Where to Buy
    —
    $1

    At

    Category
    		Fat
    5.1
    Frame
    		Aluminum
    		Manitou Mastodon Pro
    Wheels
    		Aluminum
    Wheel Size
    		26″
    		Shimano Hydraulic Disc
    		Deore
    Drivetrain
    		1 × 11
    Brand Site

    khsbicycles.com

    Summary

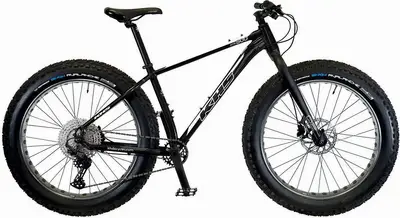

    		The KHS 500 is a 26″ aluminum frame hardtail fat bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    21 mph

    500

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    5002025 KHS
    Frame

    6061 Aluminum w/Custom Formed T/T & D/T, Replaceable Derailleur Hanger, 1.5 taper, 10x190mm, Internal Cable Routing

    Color: Black

    Fork

    Aluminum Straight Blade, 1,5 Taper, 15mm x 150 Thru-Axle or Manitou Mastodon Pro 100mm or Carbon Fork Option

    Bottom Bracket

    Outboard Cartridge Bearing

    Headset

    Threadless 1-1/8~1.5 Tapered, Zero Stack

    Stem

    Aluminum 3D Forged, Threadless 4-bolt, 35mm, S=60mm, M-XL=70mm

    Handlebar

    Aluminum 35mm Riser, 760 x 15mm

    Saddle

    KHS Sport Dual Density Padding w/Handle

    Seatpost

    KHS Aluminum Micro-Adjust, 31.6mm x 350mm

    Type: Rigid

    Pedals

    Wellgo Aluminum Platform w/DU Bearings

    Grips

    Q2 Lock-on

    Groupset
    Rear Derailleur

    Shimano Deore RD-M5100

    Front Derailleur

    n/a

    Crank

    Samox 2-pc Forged, 30T Narrow Wide Chainring

    Shifters

    Shimano Deore SL-M5100 Trigger, Right Only

    Cassette

    Shimano CS-M5100-11, 11/51T, 11-Speed

    Chain

    KMC X11 w/MissingLink

    Brakes

    Shimano MT200 Hydraulic Disc, 180/160mm Rotors Wave ‘12’

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano MT200

    Wheels
    Rims

    Aluminum 80mm w/Rectangular holes, 26x32H

    Spokes

    14G Black, 32x32

    Front Hub

    KT Aluminum Disc, Forged, Sealed Bearing, 15mm Thru-Axle 15x150

    Rear Hub

    KT Aluminum Disc Forged Sealed Bearing, Cassette, QR, 190mm

    Tires

    Vee Avalanche, 26 x 4.8”, 72TPI
