    35002014 KHS
    Recommended
    MSRP
    $2,849
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    5.0
    Frame
    		Aluminum
    		RockShox Reba
    		RockShox Monarch RT3
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Hayes Hydraulic Disc
    		X9, X7
    Drivetrain
    		2 × 10
    Suspension
    		Full
    Front Travel
    		120mm
    Rear Travel
    		120mm
    Brand Site
    Summary

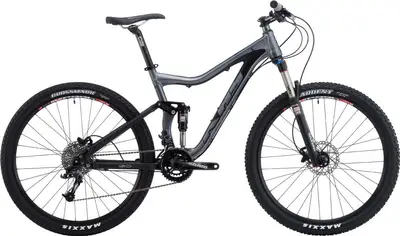

    		The KHS 3500 is a 27.5″ aluminum frame full suspension trail bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    3500

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    35002014 KHS
    Frame

    650B 120mm, Alloy 6061 w/Custom Formed Dbl.Butted TT & DT, 1.5 Taper, 12 x 142 rear axle , w/replaceable derailleur hanger

    Color: Charcoal Gray / Matte Black

    Fork

    Rock Shox Reba RLT, 120mm, 1-1/8-1.5 Tapered Alloy Steerer, Motion Control, External rebound, low speed compression to 'Lock' with external Floodgate , 15mm through axle

    Travel: 120mm

    Shock

    RockShox Monarch RT3 HV, Solo air with 3 Pos. flood gate switch, rebound adj.

    Travel: 120mm

    Bottom Bracket

    SRAM GXP

    Headset

    FSA Orbit 1.5E Zero Stack, 1 1/8" x 1.5

    Stem

    Kore XCD, 3D Forged, 31.8mm S:80mm,M:90mm,L:100mm XL:100mm

    Handlebar

    Kore XCD Riser, 710 x 15mm, 31.8

    Saddle

    WTB Volt Comp

    Seatpost

    Q2 Alloy, 31.6x350mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    SRAM X9 Type 2

    Front Derailleur

    SRAM X7

    Crank

    SRAM S1000, 38/24T, 10s

    Shifters

    SRAM X7 Triggers

    Cassette

    SRAM PG-1050, 11-36T, 10-speed

    Chain

    SRAM PC-1051

    Brakes

    Hayes Prime Sport, 160mm Rotors

    Type: Hayes Hydraulic Disc

    Brake Levers

    Hayes Prime Sport

    Wheels
    Rims

    DT #466D, 650B

    Spokes

    14G Black w/alloy nipples, 32X32

    Tires

    Maxxis Ardent 650B x 2.25 Ft, Crossmark 650B x 2.1 Rr, Folding
