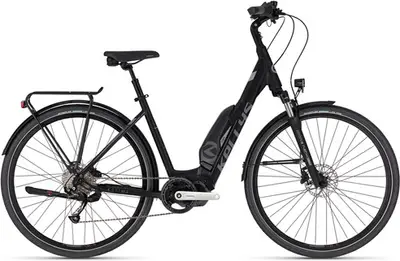

    ESTIMA 10 504Wh2022 Kellys
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		General Urban, E-Bike
    6.3
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		Shimano 250W 40Nm mid-drive
    		Shimano 504Wh
    		Altus
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    kellysbike.com

    Summary
    		The Kellys ESTIMA 10 504Wh is a 700c aluminum frame general urban e-bike with modest components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    ESTIMA 10 504Wh

    Highest gear

    (descending)

    Geometry
    Specs
    ESTIMA 10 504Wh2022 Kellys
    Frame

    KELLYS e-FRAME City Aluminium alloy monotube, semi-integrated battery, tapered HT, integrated kickstand mount

    Fork

    SR SUNTOUR NEX-E25 NLO, 63mm, coil spring

    Travel: 63mm

    Spring Type: Coil

    Stem

    PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 85mm (S), 105mm (M)

    Handlebar

    KALLOY RiseBar - diam 31.8mm / width 640mm

    Saddle

    SELLE ROYAL Freedom Royalgel

    Seatpost

    KALLOY suspension - diam 30.9mm / length 300mm (S), 350mm (M)

    Type: Suspension

    Pedals

    plastic

    Grips

    KLS Wave 2Density ergonomic

    Groupset
    Rear Derailleur

    SHIMANO Altus M2000 (direct mount)

    Crank

    SHIMANO E5000 (38T) - length 170mm

    Shifters

    SHIMANO Altus SL-M2000-R Rapidfire Plus

    Cassette

    SHIMANO SC-HG201-9 (11-36T)

    Chain

    KMC Z1 (118 links)

    Brakes

    SHIMANO MT200 Hydraulic Disc

    Type: Shimano Hydraulic Disc

    Brake Levers

    SHIMANO BL-MT200

    Wheels
    Rims

    KLS Draft Disc 622x21 (32 holes)

    Spokes

    stainless steel black

    Front Hub

    SHIMANO TX505 Disc Center Lock (32 holes)

    Rear Hub

    SHIMANO TX505 Disc Center Lock (32 holes)

    Tires

    MICHELIN Protec BR 47-622 (28x1.75) ReflectiveLine

    Disc Rotors

    160mm front / 160mm rear

    Electric Components
    Motor

    SHIMANO STEPS E5000, 36V

    Battery

    SHIMANO BT-E8010, 504Wh / capacity 14Ah

    Display

    SHIMANO SC-E5000 cycle computer with assist switch

    Accessories
    Lights

    Front: AXA Compactline 35, Rear: TRELOCK Duo Flat

    Fenders

    plastic
