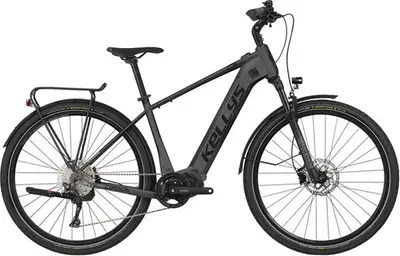

    E-CARSON 70 720Wh2021 Kellys
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    7.9
    Frame
    		Aluminum
    		RockShox Recon Silver RL
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		Shimano 250W 60Nm mid-drive
    		720Wh
    		XT, Deore
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    kellysbike.com

    Summary
    		The Kellys E-CARSON 70 720Wh is a 700c aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    E-CARSON 70 720Wh

    Highest gear

    (descending)

    Geometry
    Specs
    E-CARSON 70 720Wh2021 Kellys
    Frame

    E-CARSON R series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT / Made in EU

    Fork

    ROCK SHOX Recon Silver RL (29) Boost, 100mm, Solo Air / Motion Control / Maxle Stealth 15mm thru axle

    Travel: 100mm

    Spring Type: Air

    Stem

    PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 105mm

    Handlebar

    KALLOY RiseBar - diam 31.8mm / width 640mm

    Saddle

    SELLE ROYAL Lookin Visual Royalgel

    Seatpost

    KLS Active - diam 30.9mm / length 350mm

    Type: Rigid

    Pedals

    plastic

    Grips

    KLS Wave 2Density ergonomic

    Groupset
    Rear Derailleur

    SHIMANO Deore XT M8000 (direct mount)

    Crank

    SHIMANO E6100 (38T) - length 175mm

    Shifters

    SHIMANO Deore SL-M5100-R Rapidfire Plus

    Cassette

    SHIMANO CS-M5100-11 (11-42T)

    Chain

    KMC e11T (116 links)

    Brakes

    SHIMANO MT200 Hydraulic Disc

    Type: Shimano Hydraulic Disc

    Brake Levers

    SHIMANO BL-MT200

    Wheels
    Rims

    KLS Draft Disc 622x21 (32 holes)

    Spokes

    stainless steel black

    Front Hub

    SHIMANO MT400-B / SHIMANO Alivio M4050 Disc Center Lock (32 holes)

    Rear Hub

    SHIMANO MT400-B / SHIMANO Alivio M4050 Disc Center Lock (32 holes)

    Tires

    SCHWALBE Marathon Almotion Performance 55-622 (28x2.15) ReflectiveLine

    Disc Rotors

    180mm front / 180mm rear

    Electric Components
    Motor

    SHIMANO STEPS E6100, 36V

    Battery

    KELLYS Re-Charge V10 Li-ion internal removable 720Wh / capacity 20Ah, powered by BMZ

    Display

    SHIMANO SC-E5000 cycle computer with assist switch

    Accessories
    Lights

    Front: TRELOCK Veo 50, Rear: TRELOCK Duo Flat

    Fenders

    alloy
