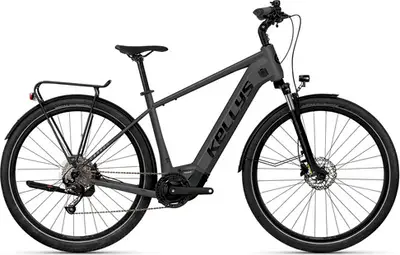

    E-CARSON 30 P 725Wh2023 Kellys
    Recommended
    MSRP
    ($3,606)
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    7.3
    Frame
    		Aluminum
    		Suntour NVX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		Panasonic 95Nm mid-drive
    		725Wh
    		CUES
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    kellysbike.com

    Summary
    		The Kellys E-CARSON 30 P 725Wh is a 700c aluminum frame commuter e-bike with mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    E-CARSON 30 P 725Wh

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    E-CARSON 30 P 725Wh2023 Kellys
    Frame

    KELLYS E-CARSON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT

    Fork

    SR SUNTOUR NVX 30 NLO DS (29"), 100 mm, coil spring

    Travel: 100mm

    Spring Type: Coil

    Stem

    PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 105 mm

    Handlebar

    KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm

    Saddle

    SELLE ROYAL Vivo

    Seatpost

    KLS Active - diam 30.9 mm / length 350 mm

    Type: Rigid

    Pedals

    plastic

    Grips

    KLS Wave 2Density ergonomic

    Groupset
    Rear Derailleur

    SHIMANO Cues U4000 (direct mount)

    Crank

    MIRANDA Delta (36T) - length 170 mm

    Shifters

    SHIMANO Cues SL-U4000-9 Rapidfire Plus

    Cassette

    SHIMANO Linkglide CS-LG300-9 (11-41T)

    Chain

    SHIMANO Linkglide CN-LG500 (122 links)

    Brakes

    SHIMANO MT200 hydraulic disc

    Type: Shimano Hydraulic Disc

    Brake Levers

    SHIMANO BL-MT200

    Wheels
    Rims

    KLS Draft Disc 622x21 (32 holes)

    Spokes

    stainless steel black

    Front Hub

    SHIMANO TX505 Disc Center Lock (32 holes)

    Rear Hub

    SHIMANO TX505 Disc Center Lock (32 holes)

    Tires

    IMPAC Bigpac 55-622 (28"x2.15) TwinSkin or KENDA Kwick Nine (29"x2.0) - ReflectiveLine

    Disc Rotors

    160 mm front / 160 mm rear

    Electric Components
    Motor

    PANASONIC GX Ultimate, 95 Nm, 36 V

    Battery

    KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ

    Display

    PANASONIC Bluetooth® 5.0 navigation Side Color Display

    Accessories
    Lights

    Front: AXA Compactline 35, Rear: TRELOCK Duo Flat

    Fenders

    plastic
