    E-CARSON 30 720Wh2021 Kellys
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    6.9
    Frame
    		Aluminum
    		Suntour NVX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		Shimano 250W 40Nm mid-drive
    		720Wh
    		Altus
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    kellysbike.com

    Summary

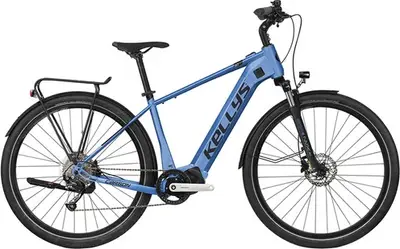

    		The Kellys E-CARSON 30 720Wh is a 700c aluminum frame commuter e-bike with modest components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    E-CARSON 30 720Wh

    Highest gear

    (descending)

    Geometry
    Specs
    E-CARSON 30 720Wh2021 Kellys
    Frame

    KELLYS E-CARSON R series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT / Made in EU

    Fork

    SR SUNTOUR NVX30 NLO (29), 100mm, coil spring

    Travel: 100mm

    Spring Type: Coil

    Stem

    PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 105mm

    Handlebar

    KALLOY RiseBar - diam 31.8mm / width 640mm

    Saddle

    KLS Sentinel 2

    Seatpost

    KLS Active - diam 30.9mm / length 350mm

    Type: Rigid

    Pedals

    plastic

    Grips

    KLS Wave 2Density ergonomic

    Groupset
    Rear Derailleur

    SHIMANO Altus M2000 (direct mount)

    Crank

    SHIMANO E5000 (38T) - length 175mm

    Shifters

    SHIMANO Altus SL-M2000 Rapidfire Plus

    Cassette

    SHIMANO CS-HG201-9 (11-36T)

    Chain

    KMC e9S (118 links)

    Brakes

    SHIMANO MT200 Hydraulic Disc

    Type: Shimano Hydraulic Disc

    Brake Levers

    SHIMANO BL-MT200

    Wheels
    Rims

    KLS Draft Disc 622x21 (32 holes)

    Spokes

    stainless steel black

    Front Hub

    SHIMANO TX505 Disc Center Lock (32 holes)

    Rear Hub

    SHIMANO TX505 Disc Center Lock (32 holes)

    Tires

    IMPAC Bigpac 55-622 (28x2.15) TwinSkin, ReflectiveLine

    Disc Rotors

    160mm front / 160mm rear

    Electric Components
    Motor

    SHIMANO STEPS E5000, 36V

    Battery

    KELLYS Re-Charge V10 Li-ion internal removable 720Wh / capacity 20Ah, powered by BMZ

    Display

    SHIMANO SC-E5000 cycle computer with assist switch

    Accessories
    Lights

    Front: AXA Compactline 35, Rear: TRELOCK Duo Flat

    Fenders

    plastic
