    CARSON 902023 Kellys
    Recommended
    MSRP
    ($1,511)
    Where to Buy
    —
    $1

    At

    Category
    		Commuter
    6.6
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		XT, Deore
    Drivetrain
    		3 × 10
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    kellysbike.com

    Summary

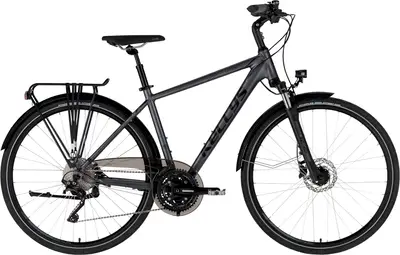

    		The Kellys CARSON 90 is a 700c aluminum frame commuter bike with upper mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    38 mph

    CARSON 90

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CARSON 902023 Kellys
    Frame

    KELLYS Tour Profile - internal routing, integrated kickstand mount

    Fork

    SR SUNTOUR NEX-E25 NLO, 63 mm, coil spring

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    SHIMANO BB-ES300 Octalink

    Stem

    PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 105 mm

    Handlebar

    alloy RiseBar - diam 31.8 mm / width 640 mm

    Saddle

    SELLE ROYAL Lookin Visual Royalgel

    Seatpost

    KALLOY suspension - diam 30.9 mm / length 350 mm

    Type: Suspension

    Pedals

    alloy

    Grips

    KLS Wave 2Density ergonomic

    Groupset
    Rear Derailleur

    SHIMANO Deore XT T8000 (direct mount)

    Front Derailleur

    SHIMANO Deore T6000 (34.9 mm)

    Crank

    SHIMANO T521 Hollowtech Octalink (48x36x26T) - length 175 mm

    Shifters

    SHIMANO Deore SL-M6000 Rapidfire Plus

    Cassette

    SHIMANO CS-HG50-10 (11-36T)

    Chain

    KMC X10 EL (114 links)

    Brakes

    SHIMANO MT200 Hydraulic Disc

    Type: Shimano Hydraulic Disc

    Brake Levers

    SHIMANO BL-MT200

    Wheels
    Rims

    KLS Draft Disc 622x21 (32 holes / eyelets)

    Spokes

    steel

    Front Hub

    SHIMANO Dynamo 3D37 / SHIMANO TX505 Disc Center Lock (32 holes)

    Rear Hub

    SHIMANO Dynamo 3D37 / SHIMANO TX505 Disc Center Lock (32 holes)

    Tires

    MICHELIN Protek BR 42-622 (700x40C) ReflectiveLine

    Disc Rotors

    160 mm front / 160 mm rear

    Accessories
    Lights

    Front: AXA Compactline 35 Steady, Rear: AXA Slim Steady

    Fenders

    RPZ
