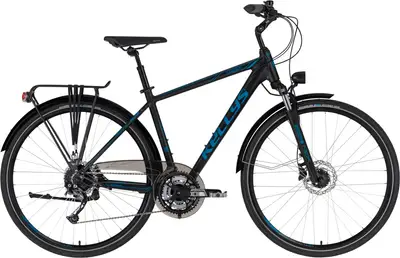

    CARSON 702022 Kellys
    Recommended
    MSRP
    ($1,045)
    Where to Buy
    —
    $1

    At

    Category
    		Commuter
    5.8
    Frame
    		Aluminum
    		Suntour NEX
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Hydraulic Disc
    		Alivio, Altus
    Drivetrain
    		3 × 9
    Suspension
    		Hardtail
    Front Travel
    		63mm
    Brand Site

    kellysbike.com

    Summary
    		The Kellys CARSON 70 is a 700c aluminum frame commuter bike with mid-range components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    38 mph

    CARSON 70

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    CARSON 702022 Kellys
    Frame

    KELLYS Tour Profile - internal routing, integrated kickstand mount

    Fork

    SR SUNTOUR NEX DX, 63mm, coil spring (threaded steerer)

    Travel: 63mm

    Spring Type: Coil

    Bottom Bracket

    cartridge (113mm)

    Stem

    KALLOY adjustable - diam 25.4mm / bar bore 25.4mm / length 90mm (S), 100mm (M - XL)

    Handlebar

    steel RiseBar - diam 25.4mm / rise 35mm / width 630mm

    Saddle

    SELLE ROYAL Essenza Moderate

    Seatpost

    KALLOY suspension - diam 30.9mm / length 300mm (S), 350mm (M - XL)

    Type: Suspension

    Pedals

    alloy

    Grips

    KLS Wave 2Density ergonomic

    Groupset
    Rear Derailleur

    SHIMANO Alivio M4000 (direct mount)

    Crank

    SR SUNTOUR XCM (48x36x26T) - length 170mm (S), 175mm (M - XL)

    Shifters

    SHIMANO Altus SL-M2010-9 Rapidfire Plus

    Cassette

    SHIMANO CS-HG200-9 (11-34T)

    Chain

    KMC X9 (114 links)

    Brakes

    SHIMANO MT200 Hydraulic Disc

    Type: Shimano Hydraulic Disc

    Brake Levers

    SHIMANO BL-MT200

    Wheels
    Rims

    KLS Draft Disc 622x21 (32 holes / eyelets)

    Spokes

    steel

    Front Hub

    SHIMANO Dynamo 3D37 / SHIMANO TX505 Disc Center Lock (32 holes)

    Rear Hub

    SHIMANO Dynamo 3D37 / SHIMANO TX505 Disc Center Lock (32 holes)

    Tires

    MICHELIN Protek BR 42-622 (700x40C) ReflectiveLine

    Disc Rotors

    160mm front / 160mm rear

    Accessories
    Lights

    Front: BÜCHEL Urban LED, Rear: BÜCHEL Champs Elysees LED Standlight

    Fenders

    RPZ
