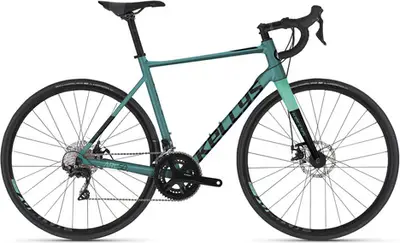

    ARC 502022 Kellys
    Recommended
    MSRP
    ($1,744)
    Where to Buy
    —
    $1

    At

    Category
    		Race
    3.5
    Frame
    		Aluminum
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Tektro Mechanical Disc
    		105
    Drivetrain
    		2 × 11
    Brand Site

    kellysbike.com

    Summary
    		The Kellys ARC 50 is an aluminum frame race bike with upper mid-range components and tektro mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    39 mph

    ARC 50

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    ARC 502022 Kellys
    Frame

    KELLYS Endurance Concept - Aluminium alloy Disc, flat mount, tapered HT, internal routing

    BB Standard: BSA, 68mm, Threaded

    Fork

    KELLYS Carbon Disc - 1.5 tapered steerer, post mount disc brake

    Bottom Bracket

    SHIMANO BB-RS500

    Stem

    KLS Active Road - diam 28.6mm / bar bore 31.8mm / 6° / length 90mm (S), 100mm (M), 110mm (L)

    Handlebar

    KLS Active Road - diam 31.8mm / width 400m (S), 420mm (M), 440mm (L)

    Saddle

    KLS SlipStream cr-mo rails

    Seatpost

    KLS Active - diam 30.9mm / length 350mm (S), 400mm (M - L)

    Type: Rigid

    Grips

    KLS bar tape

    Groupset
    Rear Derailleur

    SHIMANO 105 R7000 (direct mount)

    Crank

    SHIMANO RS510 (50x34T) - length 172.5mm (S - M), 175mm (L)

    Shifters

    SHIMANO 105 ST-R7000 Dual Control

    Cassette

    SHIMANO CS-R7000-11 (11-32T)

    Chain

    KMC X11 EL (108 links)

    Brakes

    TEKTRO Spyre Mechanical Disc

    Type: Tektro Mechanical Disc

    Brake Levers

    SHIMANO 105 ST-R7000 Dual Control

    Wheels
    Rims

    KELLYS Spark 622x15 (28 holes / eyelets)

    Spokes

    stainless steel black

    Front Hub

    NOVATEC Disc (28 holes)

    Rear Hub

    NOVATEC Disc (28 holes)

    Tires

    SCHWALBE Lugano 25-622 (700x25C) K-Guard, Silica

    Disc Rotors

    160mm front / 160mm rear
