Bike Comparison

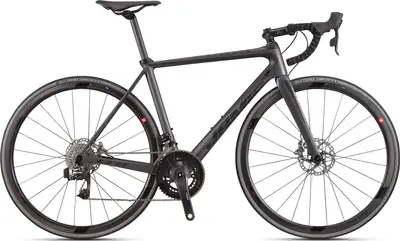

    XENITH LTD2018 Jamis
    Recommended
    MSRP
    $6,999
    Where to Buy
    —
    $1

    At

    Category
    		General Road
    Weight
    		16.5 lbs
    8.8
    Frame
    		Carbon
    Fork
    		Carbon
    Wheels
    		Carbon
    Wheel Size
    		700c
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		RED AXS
    Drivetrain
    		2 × 11 Electronic
    Brand Site

    jamisbikes.com

    Summary
    		The Jamis XENITH LTD is a carbon frame general road bike with ultra high-end components and hydraulic disc brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    XENITH LTD
    Other General Road bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    41 mph

    XENITH LTD

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    XENITH LTD2018 Jamis
    Frame

    Jamis Road carbon fiber monocoque Dyad Elite M30/T700, FEA optimized Near Net SPV molding process, SST tubing diameters, oversized seat tube, 1.5 - 1 1/8” head tube with carbon bearing races, EVO386 carbon BB shell, ACE internal cable routing compatible for both Di2 wires or traditional cables, rider tuned twin seat stays, oversized asymmetrical chainstays with flat mount disc brake mounts, 12x142 thru-axle with Jamis MTS (Modular Thru-axle System), carbon drop outs with replaceable alloy FD mount and RD hanger

    BB Standard: PF30, Press Fit

    Fork

    Jamis Road Disc carbon fiber, FEA optimized Near Net SPV molding process, 1.5” hollow formed crown, monocoque one-piece forming technology, flat mount disc brakes with internal cable, 12mm Jamis MTS (Modular Thru-axle System) with carbon dropouts

    Bottom Bracket

    Enduro Ceramic PressFit 30

    Headset

    Enduro CNC integrated, Stainless Steel sealed bearing with 15mm top cone, 1.5 - 1 1/8”

    Stem

    3T ARX II Team Stealth, 3D forged 7075 T6 alloy, 6˚ x 90mm (48/51), 100mm (54/56), 120mm (58/61)

    Handlebar

    3T Ergosum Team, Carbon, 31.8 x 400mm (48/51), 420mm (54/56), 440mm (58/61)

    Saddle

    Fizik Artares R5 with intergrated clip system

    Seatpost

    3T Zero25 Team Carbon, 31.6 x 350mm, offset 0/25° with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp

    Pedals

    N/A

    Groupset
    Rear Derailleur

    SRAM RED eTap

    Front Derailleur

    braze-on

    Crank

    SRAM RED, 52/36T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61)

    Shifters

    SRAM RED eTap HRD hydraulic, 22-speed

    Cassette

    SRAM XG-1190 11-speed, 11-28T

    Chain

    SRAM RED 22 Chain

    Brakes

    SRAM RED HRD flat mount hydraulic disc brakes, SRAM 160mm rotors with SRAM RED eTap levers

    Wheels
    Rims

    3T DISCUS C35 TEAM Carbon Tubeless Disc Wheelset. 11-speed, 24H, 32mm rim height with 25mm width, 3T Centerlock hubs with alloy body, spindle and freewheel and adjustable bearings and stainless steel straight-pull bladed spokes, front 12mm/rear 12x142 Shimano thru axle

    Tires

    Vittoria Corsa with 4c Compound and G+Isotech 320TPI, 700 x 25c
