Recommended |
---|
MSRP | $1,149 | |
---|---|---|
Where to Buy | — $1 At | |
Category | Race | |
Weight | 21.0 lbs | |
Aluminum | ||
Fork | Carbon | |
Wheels | Aluminum | |
Wheel Size | 700c | |
Brakes | Mechanical Disc | |
Groupset | Sora, FSA | |
Drivetrain | 2 × 9 | |
Brand Site | ||

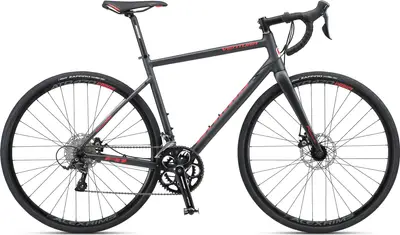

Summary | The Jamis VENTURA A1 is an aluminum frame race bike with mid-range components and mechanical disc brakes. |
Based on frame geometry and build specs.
Frame | Size Specific Design double-butted 6061 aluminum compact sloping top tube frame design with with redesigned rear triangle, SST tubing diameters and internal cable guides, 1 1.5 - 1 1/8” tapered head tube, butted seat tube for 27.2 seat post, flat mount disc brake mount, replaceable derailleur hanger and fender/rack eyelets | |
---|---|---|
Fork | Jamis Performance ECO carbon composite with carbon steerer, 1.5” hollow formed crown, monocoque one-piece forming technology, carbon dropouts with stainless tabs, flat mount disc brake mount with internal cable routing, exposed fender eyelets | |
Bottom Bracket | FSA sealed cartridge, 68 x 110.5mm | |
Headset | FSA Integrated, threadless, 1.5 - 1 1/8” | |
Stem | Ritchey 4-Axis, 3D forged 6061 alloy, 6˚ x 90mm (48/51), 100mm (54/56), 120mm (58/61) | |
Handlebar | Ritchey Logic, 6061 aluminum, 31.8 x 400mm (48/51) 420mm (54/56), 440mm (58/61) | |
Saddle | Selle Royal Asphalt with integrated clip system | |
Seatpost | Ritchey Road, 27.2 x 350mm with alloy clamp | |
Pedals | Touring platform style, full alloy with toe clips |
Rear Derailleur | Shimano Sora RD-R3000 | |
---|---|---|
Front Derailleur | Sora FD-R3000 | |
Crank | FSA Vero, 50/34T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61) | |
Shifters | Shimano Sora ST-R3000 Dual Control STI, 18-speed | |
Cassette | Shimano HG201 9-speed, 11-32T | |
Chain | KMC Z9 | |
Brakes | Tektro Lyra mechanical disc brakes and Shimano Sora ST-R3000 STI levers |
Rims | Alex ATD 470 disc specific rims with TCS (Tubeless Compatible System), 32H, Joytec 6-bolt alloy hubs with QR and 14g stainless steel spokes | |
---|---|---|
Tires | Vittoria Zaffiro, 700 x 28c |
