MSRP | $2,099 | $2,099 |
|---|---|---|
Where to Buy | — $1 At | — $1 At |
Category | Gravel | Gravel |
Weight | 23.5 lbs | |
| Steel | Steel | |
Fork | Carbon | Steel |
Wheels | Aluminum | Aluminum |
Wheel Size | 700c | 650b / 700c |
Clearance | 47c (27.5″) / 45c (700c) | |
Brakes | Hydraulic Disc | Hydraulic Disc |
Groupset | GRX 800, GRX 600 | GRX 400, GRX 600 |
Drivetrain | 1 × 11 | 2 × 10 |
Brand Site | ||

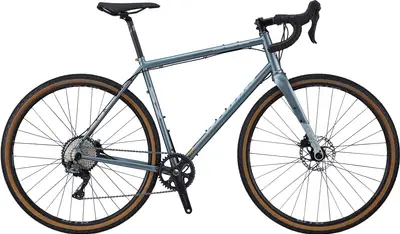

Summary | The Jamis RENEGADE S2 is a steel frame gravel bike with high-end components and hydraulic disc brakes. | |
Based on frame geometry and build specs.
Frame | UPDATED Jamis Size Specific Design frame geometry, Reynolds 631 double-butted chromoly main tubes, tapered head tube for tapered fork, oval seat stays, Di2 compatible threaded BB shell, 12x142 Jamis MTS (Modular Thru-axle System), 163x1.5x14, flat mount disc brake mounts, top tube mounted full cable housing, dropper post cable guides, 3 waterbottle mounts, TT mounts, rack and fender eyelets. BB Standard: BSA, 68mm, Threaded | 612 Select Chromoly Steel, TIG Welded and Brazed, E.D. Coated BB Standard: BSA, 68mm, Threaded |
|---|---|---|
Fork | Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System), 118x1.5x13 with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and water bottle eyelets | 612 Select Chromoly Steel, All-City Signature Fork ends and Crown, TIG Welded and Brazed, E.D. Coated |
Bottom Bracket | Shimano | Shimano BSA |
Headset | FSA IS2 sealed bearing Internal with 15.3mm top cone, 1.5 - 1 1/8” | Cane Creek 40 Series |
Stem | Ritchey 4-Axis 3D forged 6061 alloy, 6˚ x 60mm (44), 70mm (48/51), 80mm (54/56), 100mm (58/61) | AL6061, 3D forged, 4-bolt stem, 31.8mm, ±6° Rise |
Handlebar | Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12° flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61) | AL6061, 31.8mm, 12° Flair |
Saddle | Selle Royal Asphalt with integrated clip system | All-City Gonzo -OR- DDK-5255 |
Seatpost | Jamis carbon fiber micro-adjust, 27.2 x 330mm with cromo seat pin | 27.2mm, two-bolt, 350mm length |
Pedals | N/A |
Rear Derailleur | Shimano GRX RD-RX812 Shadow Plus | Shimano GRX RX400, 10-speed |
|---|---|---|
Front Derailleur | Shimano GRX RX400 | |
Crank | Shimano GRX FC-RX600, 40T, 170mm (44/48/51), 172.5mm (54/56), 175mm (58/61) | Shimano GRX RX600, 46/34t |
Shifters | Shimano GRX ST-RX600 Dual Control STI, 22-speed. | Shimano GRX RX400 |
Cassette | Shimano 11-speed, 11-42T | MicroSHIFT, 11-32t |
Chain | KMC x11 EPT Anti-Rust | KMC X10 EPT |
Brakes | Shimano GRX BR-RX400 flat mount hydraulic disc brakes with resin pads, Shimano 160mm rotors with GRX ST-RX600 Dual Control STI levers | Shimano GRX RX400 |
Brake Levers | Shimano GRX RX400 |
Rims | WTB ST Light i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Formula alloy 6-bolt sealed bearing hubs, 14g black stainless steel spokes and front 12mm/rear 12x142 thru-axle with Switch Lever | WTB ST i19, TCS 2.0, 32h, 650b (43cm~61cm) |
|---|---|---|
Front Hub | All-City Go Devil, 32h, 6-bolt | |
Rear Hub | All-City Go Devil, 32h, 6-bolt | |
Tires | Donnelly X Plor MSO, 650 x 36c (44-48) 700 x 40c (51-61), with protection belt and folding bead | Teravail Rampart, 650bx47mm, 60tpi, Light & Supple, Tan Wall (43cm~61cm) |
Disc Rotors | Shimano RT26, 160mm, 6-bolt |
