Bike Comparison

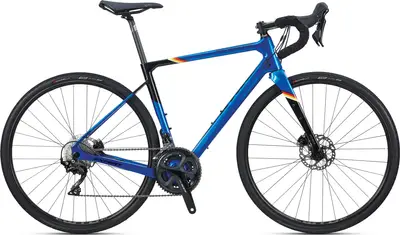

    RENEGADE EXPERT2019 Jamis
    Recommended
    MSRP
    $2,599
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    Weight
    		21.0 lbs
    4.8
    Frame
    		Carbon
    Fork
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Clearance
    		40c
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		105
    Drivetrain
    		2 × 11
    Brand Site

    jamisbikes.com

    Summary
    		The Jamis RENEGADE EXPERT is a carbon frame gravel bike with upper mid-range components and hydraulic disc brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    RENEGADE EXPERT
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    39 mph

    RENEGADE EXPERT

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    RENEGADE EXPERT2019 Jamis
    Frame

    Jamis Size Specific Design Dyad Plus T700/FRP monocoque carbon fiber frame, Near Net molding process, 12x142 thru-axle, 163x1.5x14, with Jamis MTS (Modular Thru-axle System), SST tubing diameters, integrated seat post clamp, 1.5 - 1 1/8” head tube, EVO386 carbon BB shell, ACE internal cable routing compatible for both Di2 wires or traditional cables and internal dropper post, oversized asymmetrical chainstays with flat mount disc brakes and exposed carrier/fender eyelets, carbon drop outs, replaceable FD mount and RD hanger, clearance for 40c tires

    BB Standard: PF30, Press Fit

    Tire Clearance: 40c

    Fork

    Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System), 118x1.5x13, with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and water bottle eyelets

    Bottom Bracket

    Enduro EVO PressFit 30 with Wheels MFG EVO adaptors

    Headset

    FSA integrated, sealed bearing with nylon upper compression ring, 1.5 - 1 1/8”

    Stem

    Ritchey 4-Axis 3D forged 6061 alloy, 6˚ x 80mm (48/51), 90mm (54/56), 110mm (58/61)

    Handlebar

    Ritchey Evomax Comp, 6061 aluminum, 73 reach, 120 drop with 12° flare, 31.8 x 420 (48-51) 440mm (54-56), 460mm (56-61)

    Saddle

    Selle Royal Asphalt with integrated clip system

    Seatpost

    Jamis carbon fiber micro-adjust, 27.2 x 300mm with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp

    Pedals

    N/A

    Groupset
    Rear Derailleur

    Shimano 105 RD-7000 GS

    Front Derailleur

    105 FD-7000 braze-on

    Crank

    Shimano 105 FC-7000, 50/34T, 165mm (48), 170mm (51), 172.5mm (54/56), 175mm (58/61)

    Shifters

    Shimano 105 ST-7020 Dual Control STI, 22-speed. (48-51) ST-7025 Short Reach(54-61) ST-7020 Normal Reach.

    Cassette

    Shimano 105 11-speed, 11-32T

    Chain

    Shimano CN-HG601

    Brakes

    Shimano BR-7070 flat mount hydraulic disc brakes with resin pads, Shimano 160mm rotors with Shimano Dual Control STI levers

    Wheels
    Rims

    WTB ST Light i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Formula alloy Centerlock sealed bearing hubs with front 12mm/rear 12x142 thru-axle and 14g black stainless steel spokes

    Tires

    Donnelly X Plor MSO Tubeless, 700 x 40c, protection belt and folding bead
