MSRP | $2,599 | $1,699 |
---|---|---|
Where to Buy | — $1 At | — $1 At |
Category | Gravel | Gravel |
Weight | 21.0 lbs | 23.3 lbs |
Carbon | Aluminum | |
Fork | Carbon | Carbon |
Wheels | Aluminum | Aluminum |
Wheel Size | 700c | 650b / 700c |
Clearance | 40c | 50c |
Brakes | Hydraulic Disc | Hydraulic Disc |
Groupset | GRX 800, GRX 600 | GRX 800, GRX 600 |
Drivetrain | 2 × 11 | 1 × 11 |
Brand Site | ||

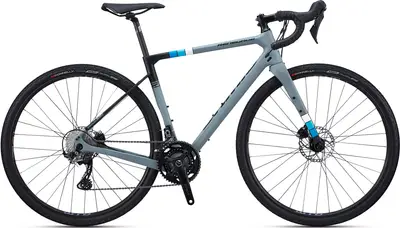

Summary | The Jamis RENEGADE C2 is a carbon frame gravel bike with high-end components and hydraulic disc brakes. |
Based on frame geometry and build specs.
Frame | Jamis Size Specific Design Dyad Plus T700/FRP monocoque carbon fiber frame, Near Net molding process, 12x142 thru-axle, 163x1.5x14, with Jamis MTS (Modular Thru-axle System), SST tubing diameters, integrated seat post clamp, 1.5 - 1 1/8” head tube, EVO386 carbon BB shell, ACE internal cable routing compatible for both Di2 wires or traditional cables and internal dropper post, oversized asymmetrical chainstays with flat mount disc brakes and exposed carrier/fender eyelets, carbon drop outs, replaceable FD mount and RD hanger, clearance for 40c tires BB Standard: PF30, Press Fit Tire Clearance: 40c | Canyon Grizl AL, Aluminium frame with Gravel Pro geometry and extended wheelbase for extra off-road stability., Axle dimension: 12x142 mm, Tyre Clearance: 50 mm, Material: Aluminium (AL) BB Standard: PF30, Press Fit Tire Clearance: 40c |
---|---|---|
Fork | Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System), 118x1.5x13, with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and water bottle eyelets | Canyon FK0087 CF Disc, Light, robust carbon frame with 3-screw mounting points on each side for attaching bottle cages and Anything Cages., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/4", Tyre Clearance: 54 mm, Material: Carbon (CF) |
Bottom Bracket | Enduro EVO PressFit 30 with Wheels MFG EVO adaptors | Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 0.19 lbs |
Headset | Ritchey Pro Drop-In, sealed bearing with nylon upper compression ring, 1.5 - 1 1/8” | |
Stem | Ritchey 4-Axis 3D forged 6061 alloy, 6˚ x 70mm (48/51), 80mm (54/56), 100mm (58/61) | Canyon V13, High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4"., Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm |
Handlebar | Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12° flare, 31.8 x 420 (48-51) 440mm (54-56), 460mm (56-61) | Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm, Clamping diameter: 31,8 mm, Width: 420 mm |
Saddle | Selle Royal Asphalt with integrated clip system | Selle Italia Model X, Gender: Unisex, Weight: 0.69 lbs |
Seatpost | Jamis carbon fiber micro-adjust, 27.2 x 300mm with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp | Canyon SP0057 VCLS, With vibration-absorbing design for top rear-end comfort., Setback: 20 mm, Clamp diameter: 27,2 mm, Material: Carbon (CF), Weight: 0.58 lbs |
Pedals | N/A | None included |
Rear Derailleur | Shimano GRX RD-RX810 Shadow Plus | Shimano GRX RX812 GS, Cage length: long, Weight: 0.55 lbs |
---|---|---|
Front Derailleur | GRX FD-RX810 braze-on | |
Crank | Shimano GRX FC-RX600, 46/30T, 170mm 48/(51), 172.5mm (54/56), 175mm (58/61) | Shimano GRX RX600 40T, On certain models, this crankset may be substituted for an alternate, equivalent FSA crankset., Potentially affected models include:, Grizl 6 (Model #2844), Grizl 7 1X (Model #3236), Grizl 7 Suspension (Model #2710), Grizl CF SL 6 (Model #3243), Grizl CF SL 7 (Model #3244), Grizl CF SL 7 1X (Model #2849), Inflight CF SL 6 (Model #3020), Grail 6 (Model #3092), Grail 7 (Model #3093), Grail CF SL 7 (Model #3095) |
Shifters | Shimano GRX ST-RX600 Dual Control STI, 22-speed | Shimano GRX RX600, Weight: 1.19 lbs | Shimano GRX RX600 11s, Weight: 1.19 lbs |
Cassette | Shimano 105 11-speed, 11-34T | Shimano SLX M7000 11-42 11s, Number of sprockets: 11 |
Chain | KMC x11 EPT Anti-Rust | Shimano CN-HG601 11s |
Brakes | Shimano GRX BR-RX400 flat mount hydraulic disc brakes with resin pads and Fin, Shimano 160mm rotors with GRX ST-RX600 Dual Control STI levers | Hydraulic Disc |
Brake Levers | Shimano GRX RX600, Weight: 1.19 lbs | Shimano GRX RX600 11s, Weight: 1.19 lbs |
Rims | WTB ST Light i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Formula alloy 6-bolt sealed bearing hubs, 14g black stainless steel spokes with front 12mm/rear 12x142 thru-axle with Switch Lever | DT Swiss Gravel LN, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 2.09 lbs | DT Swiss Gravel LN, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 2.42 lbs |
---|---|---|
Tires | Donnelly X Plor MSO, 700 x 40c, protection belt and folding bead | Schwalbe G-One Bite 45mm, Width: 45mm, Weight: 1.19 lbs |
Disc Rotors | Shimano RT70, Size: 160 mm, Weight: 0.43 lbs |
