MSRP | $1,699 | $3,299 |
|---|---|---|
Where to Buy | — $1 At | $2,599 21% off At YT Industries |
Category | Trail | Trail |
Weight | 27.5 lbs | 32.2 lbs |
| Aluminum | Carbon | |
Fork | RockShox Recon Silver RL | Fox Performance Float 34 |
Shock | Fox Float X Performance | |
Wheels | Aluminum | Aluminum |
| 26″ | 29″ | |
Brakes | Hydraulic Disc | Hydraulic Disc |
Groupset | NX | NX Eagle |
Drivetrain | 1 × 11 | 1 × 12 |
Suspension | Hardtail | Full |
Front Travel | 120mm | 130mm |
Rear Travel | - | 130mm |
Brand Site | ||

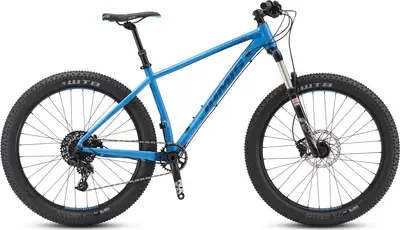

Summary | The Jamis KOMODO EXPERT 26+ is a 26″ aluminum frame hardtail trail bike with upper mid-range components. | |
Based on frame geometry and build specs.
Frame | Triple-butted 6061 aluminum, 1.5 - 1 1/8” tapered head tube, post mount disc brakes, 12x148mm thru-axle drop-outs, High Direct Mount (HDM) front derailleur with front-pull internal cable routing, internal dropper post routing, replaceable derailleur hanger, Formula axle | |
|---|---|---|
Fork | Rock Shox Recon Silver RL 27.5/26+, Solo Air spring, external rebound, lockout adjust, 32mm stanchions, 15x110mm axle, tapered aluminum steerer, 120mm travel Travel: 130mm Spring Type: Air | FOX 34 FLOAT PERFORMANCE, 29“ | 130 mm Travel | 110 x 15 mm QR Axle | 44 mm Offset | Grip Damper, Adjustable Low-Speed Compression and Rebound, Air Pressure Travel: 130mm Spring Type: Air |
Shock | FOX FLOAT PERFORMANCE, Shock Length: 210 mm | Shock Stroke: 55 mm ≙ 130 mm Travel | 2-pos lever, 0.2 Spacer, custom tune | |
Bottom Bracket | SRAM GXP | SRAM DUB Pressfit, BB DUB PF 92 MTB |
Headset | FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer | ACROS AZX, 586 Block Lock (S-M), 576 (L-XXL) I 2 Spacer 5 mm |
Stem | Ritchey Trail, 60mm (15"), 70mm (17"), 80mm (19"), 90mm (21") | RACE FACE AEFFECT R 35, Length 50 mm (S-M), 60 mm (L-XXL) | 35 mm Clamp | Rise +/-6° |
Handlebar | Ritchey Trail, 710mm x 20mm rise | RACE FACE AEFFECT R 35, Width 780 mm | Rise 20 mm | 9° Back Sweep | 5° Up Sweep | 7075 AL |
Saddle | WTB Volt Comp | SDG BEL AIR Overland 3.0, YT Custom | Width 140 mm I Lux-Alloy Rail |
Seatpost | KS eTen Integra, 100mm travel, Southpaw remote | YT POSTMAN V2, Ø 31,6mm I MMX-Remote | Adjustable drop 25/10/5mm | 100 mm (S) I 125 mm (M) | 150 mm (L) | 170 mm (XL) | 200mm (XXL) |
Pedals | N/A | |
Grips | Jamis Lock-On | ODI ELITE MOTION V2.1, Lock On |
Rear Derailleur | SRAM NX, 11-speed | SRAM NX EAGLE, 12-speed |
|---|---|---|
Crank | SRAM NX, 32T, 170mm (15"), 175mm (17-21") | SRAM NX EAGLE, Crank Arm Length 170 mm (S), 175 mm (M-XXL) | 32T | DUB |
Shifters | SRAM NX, 1x11-speed | SRAM NX EAGLE, 12-speed I MMX |
Cassette | SRAM 1130, 11-speed, 11-42T | SRAM XG 1230 Eagle, 11-50T | 12-speed |
Chain | KMC X11-1, 11-speed | |
Brakes | Shimano Deore M506 hydraulic disc, 180mm front & 160mm rear RT56 6-bolt rotors | SRAM G2 R, Rotor CENTERLINE Ø front 200 mm / rear 180 mm | Adjustable Reach |
Rims | WTB Scraper i40 TCS tubeless 26" rims, Formula sealed bearing 15x110mm front & 12x148mm rear 6-bolt disc hubs, stainless spokes | CRANKBROTHERS SYNTHESIS XCT ALLOY, Aluminium rims 29” | Front: Inner Width 26.5mm | 110 x 15mm | 6-Bolt, Rear: Inner Width 24.5mm | 148 x 12mm | 6-Bolt | Freehub HG |
|---|---|---|
Tires | WTB Ranger, 26 x 3.0”, TCS tubeless | MAXXIS MINION DHR II, Front: 29’’ x 2.4 WT I 3C MaxxTerra I EXO I TR, Rear: 29’’ x 2.4 WT I Dual Compound I EXO I TR |
