 | Recommended |
|---|
MSRP | $1,749 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Weight | 34.0 lbs | |
| Aluminum | ||
Fork | Suntour XCR Air | |
Shock | ||
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
Groupset | Deore, Suntour | |
Drivetrain | 1 × 10 | |
Suspension | Full | |
Front Travel | 130mm | |
Rear Travel | 115mm | |
Brand Site | ||

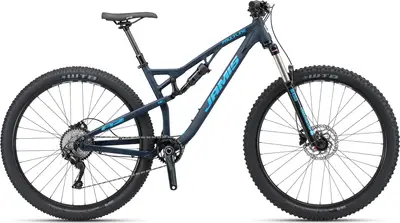

Summary | The Jamis FAULTLINE A2 is a 29″ aluminum frame full suspension crosscountry bike with upper mid-range components. | |
Based on frame geometry and build specs.
Frame | Triple-butted 6061 alloy, 115mm travel mp2 suspension, 1.5 - 1 1/8” tapered head tube, asymmetrical chainstays w/12x148mm thru-axle dropout, internal dropper post routing, ISCG05 chainguide mount, Rock Shox Deluxe Select R air shock with rebound adjust, replaceable derailleur hanger | |
|---|---|---|
Fork | SR Suntour XCR 34 LOR 29", air spring compression, lever actuated lockout, external rebound, 34mm stanchions, magnesium lowers, 15x110mm axle, 130mm travel | |
Bottom Bracket | SR Suntour External | |
Headset | FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer | |
Stem | Race Face Ride, 50mm | |
Handlebar | Race Face Ride, 35 x 760mm | |
Saddle | WTB Volt | |
Seatpost | Exaform 900i by KS Dropper, Westy remote | |
Pedals | N/A | |
Grips | Jamis Lock-On |
Rear Derailleur | Shimano Deore Shadow Plus, 10-speed | |
|---|---|---|
Crank | SR Suntour Zeron, 32T | |
Shifters | Shimano Deore, 1x10-speed | |
Cassette | Shimano HG500, 10-speed, 11-42T | |
Chain | KMC X10, 10-speed | |
Brakes | Shimano MT200 hydraulic disc, 180mm front & 160mm rear RT26 6-bolt rotors |
Rims | WTB STX i25 TCS 29" tubeless rims, 32H, Formula 15x110mm front & 12x148mm rear 6-bolt disc hubs, stainless spokes | |
|---|---|---|
Tires | WTB Vigilante 29 x 2.35” Front & Trail Boss 29 x 2.25” Rear, TCS Tubeless |
