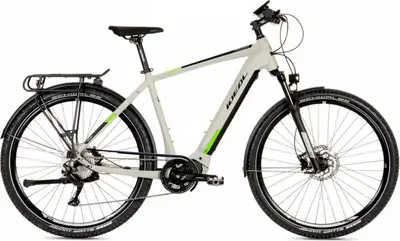

    PRISMA E810FX 292024 Ideal
    Recommended
    MSRP
    ($5,380)
    Where to Buy
    —
    $1

    At

    Category
    		Touring, E-Bike
    4.6
    Frame
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Deore Hydraulic Disc
    		Shimano 250W 85Nm mid-drive
    		Shimano 630Wh
    		Deore
    Drivetrain
    		1 × 10
    Brand Site

    idealbikes.co.uk

    Summary
    		The Ideal PRISMA E810FX 29 is an aluminum frame touring e-bike with upper mid-range components and shimano deore hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    smoothrugged
    PRISMA E810FX 29
    Other Touring bikes
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    PRISMA E810FX 292024 Ideal
    Frame

    eAdventure 29, AL6061-T4 / T6, Shimano STEPS, hydroforming, internal brake & gear cables, fully integrated battery

    BB Standard: STEPS, Press Fit

    Fork

    RST AERIAL TNL, 100 mm, 32 mm, Air, Lock Out

    Spring Type: Air

    Bottom Bracket

    STEPS, press-fit

    Stem

    Ergotec Crab 2 Ahead, 31.8 mm, 70/90 mm (Safety Level 4)

    Handlebar

    Ergotec Low Riser, 720 mm (Safety Level 5)

    Saddle

    Selle Royal Premium Essenza H

    Seatpost

    Ergotec Atar, 30.9 mm, 250/ 350 mm (Safety Level 4)

    Type: Rigid

    Grips

    Herrmans Lockable Grip Line

    Groupset
    Rear Derailleur

    Shimano Deore RD-M5120 SGS Shadow Plus

    Crank

    Shimano STEPS FC-EM600/SM-CRE70 w/o CG, 38Z, 170/175 mm

    Shifters

    Shimano STEPS SW-E7000-L switch // Shimano Deore SL-M4100-R

    Cassette

    Shimano CS-M4100-10, 11-42T

    Chain

    Shimano CN-E6090-10

    Brakes

    Shimano BR-MT410/ BL-MT401, Disc 180/180 mm, Rotor-Sensor

    Type: Shimano Deore Hydraulic Disc

    Wheels
    Rims

    Mach1 CROSS-R 27, 27C-622

    Front Hub

    Shimano HB-M3050

    Rear Hub

    Shimano FH-M3050

    Tires

    Schwalbe Johnny Watts Performance, RaceGuard, Folding, Reflex, 60-622, (29x2.35)

    Electric Components
    Motor

    Shimano STEPS centre drive unit DU-EP800, 36V, 250W, 85Nm, setting ID-ADV

    Battery

    Shimano STEPS battery (down tube) BT-E8036, 36V, 14Ah, 630Wh

    Display

    Shimano STEPS display SC-E6100

    Accessories
    Fenders

    SKS PET A65R, 65 mm

    Racks

    ID-Project, Racktime Snapit System, integrated (IMM)
