MSRP | $4,399 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Enduro | |
Weight | 5.6 lbs (frame) | |
Frame | Carbon | |
| Fox Performance Float 36 | ||
| Fox Float DPX2 Performance | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| SRAM Guide T Hydraulic Disc | ||
| NX Eagle | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 170mm | |
Rear Travel | 153mm | |
Brand Site | ||

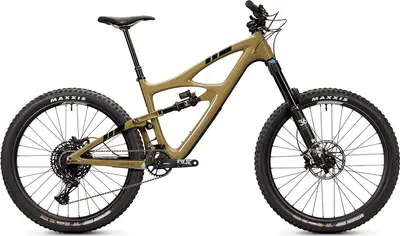

Summary | The Ibis Mojo HD5 NX is a 27.5″ carbon frame full suspension enduro bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Carbon Fiber Monocoque BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.6" Colors: Brown Pow; Charcoal | |
|---|---|---|
Fork | Fox Float 36 Performance Series 170mm, 27.5”, 110x15 Travel: 170mm Spring Type: Air | |
Shock | Fox Float Performance Series, DPX2 with EVOL, 7.875 x 2.25 Travel: 153mm | |
Bottom Bracket | Threaded (73mm English threaded) | |
Headset | ZS44 upper / ZS56 lower | |
Stem | Ibis 31.8mm (40, 50, 60, 70, 80, 90mm) | |
Handlebar | Ibis 780mm Alloy | |
Saddle | WTB Silverado Pro 142mm width | |
Seatpost | KS Rage-i Dropper (125, 150 or 170mm) Type: Dropper | |
Grips | Lizard Skins Charger Evo |
Rear Derailleur | SRAM NX Eagle | |
|---|---|---|
Crank | SRAM NX Eagle, DUB spindle, 32t Steel Ring (170mm for S/M, 175mm for L/XL) | |
Shifters | SRAM NX Eagle | |
Cassette | SRAM PG 1230 11-50T | |
Chain | SRAM NX Eagle | |
Brakes | SRAM Guide T 4p, Rear: 180mm post mount / 203mm max Type: SRAM Guide T Hydraulic Disc |
Rims | Ibis S35 Aluminum / 27.5" / Ibis Hubs | |
|---|---|---|
Tires | Maxxis Assegai EXO + WT 27.5" x 2.5" | |
Disc Rotors | SRAM Centerline 200/180 rotors |
