MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Commuter, E-Bike | |
Frame | Aluminum | |
| Aluminum | ||
Wheels | Aluminum | |
Wheel Size | 700c | |
| Hydraulic Disc | ||
| Shimano 250W 85Nm mid-drive | ||
| CUES | ||
Drivetrain | 1 × 9 | |
Brand Site | ||

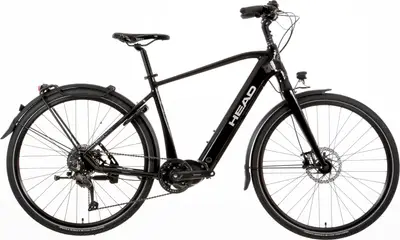

Summary | The HEAD E Revelo 2.0 joy is a 700c aluminum frame commuter e-bike with mid-range components and hydraulic disc brakes. | |
Ask 99 Spokes
Frame | Alloy 6061, sizes: 46/50/54 cm , Integrated batteryBMZ Downtube V10 10s4p 36V 20 Ah V10, internal cable routing, hydro-formed tubes, heat-treated BB Standard: STEPS, Press Fit Color: Black Matt | |
|---|---|---|
Fork | Rigit Fork, Al | |
Bottom Bracket | STEPS, press-fit | |
Headset | Neco H386E, Sealed bearings | |
Stem | HBC, Length: 60mm, 31.8mm | |
Handlebar | HBC, Width: 660mm, bended, 31.8mm | |
Saddle | HBC, Rails: Cr-Mo | |
Seatpost | HBC VL3389, Length: 350mm, 27.2mm Type: Rigid | |
Pedals | Wellgo M272T DU, |
Rear Derailleur | Shimano CUES RD-U3020 GS, 9 speed | |
|---|---|---|
Crank | Shimano STePS FCEM600, Chainring: 44t, length: 175mm | |
Shifters | ShimanoCUES SL-U4000, 1×9 | |
Chain | Shimano CNLG500, 9 speed | |
Brakes | RUSH BH-M286 2piston, Disc brakes: 160/160mm Type: Hydraulic Disc |
Rims | Remerx Dragon 719 , 32h | |
|---|---|---|
Front Hub | Formula DC20 , QR, 100mm | |
Rear Hub | Formula DC22, QR, 135mm | |
Tires | Impac STREETPAC+RT;, 28×1,75 |
Motor | Shimano STePS EP600, Power 250W, max torque: 85Nm, max support up to 200% | |
|---|---|---|
Battery | BMZ, BMZ Downtube V10 10s4p 36V 20 Ah V10 | |
Display | Shimano STePS SCE5000 , |
Lights | Front: Shiny 40,, Rear: Tivoli, | |
|---|---|---|
Fenders | SKS, | |
Racks | SKS Infinity GT3 , Integrated |
