Recommended |
---|
MSRP | $2,699 | |
---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry, E-Bike | |
Aluminum | ||
Fork | Suntour XCM | |
Wheels | Aluminum | |
27.5″ | ||
Brakes | Hydraulic Disc | |
Shimano 250W 50Nm mid-drive | ||
Shimano 418Wh | ||
Groupset | Deore, Shimano | |
Drivetrain | 1 × 10 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

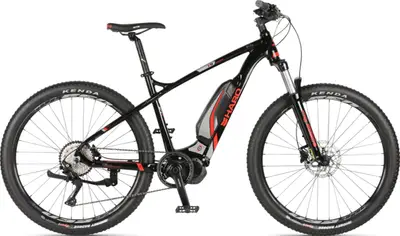

Summary | The Haro Double Peak i/O is a 27.5″ aluminum frame hardtail crosscountry e-bike with upper mid-range components. |
Based on frame geometry and build specs.
Frame | Double Peak I/O X6 Aluminum frame for Shimano STePS w/ Tapered Head Tube & Top & Bottom Shrouds (E8000-type battery) | |
---|---|---|
Fork | SR Suntour XCM34 Boost LO DS T/A, 100mm travel, Tapered | |
Bottom Bracket | N/A | |
Headset | FPD Dozer 1-1/8"-1.5", w/ Bottom AC Bearing | |
Stem | 3D Forged alloy | |
Handlebar | Alloy riser bar, 25mm Rise | |
Saddle | WTB Volt Sport Wide 150mm | |
Seatpost | Pivit Alloy Microadjust 31.6 x 350mm | |
Pedals | New FPD Nylon, 9/16" Crmo axles |
Rear Derailleur | Shimano Deore, RD-6000, 10-spd, Shadow Plus | |
---|---|---|
Front Derailleur | N/A | |
Crank | Shimano STePS E6100, 38T chainring | |
Shifters | Shimano Deore RapidFire+ 10-spd | |
Cassette | Shimano Deore HG-500, 10-spd, 11-42T | |
Chain | KMC X10-E | |
Brakes | Shimano BR-MT200 Hydraulic Disc, 180mm / 160mm Center Lock Rotors | |
Brake Levers | Shimano BL-MT201 Hydraulic |
Rims | Weinmann U-32 TL, Sleeved, Tubeless Ready, 27.5"x32mm; Double Wall w/ eyelets | |
---|---|---|
Front Hub | Shimano MT-400 Front w/ Thru-Axle & M-4050 Rear w/ Quick Release, 32h, Cassette Body | |
Rear Hub | Shimano MT-400 Front w/ Thru-Axle & M-4050 Rear w/ Quick Release, 32h, Cassette Body | |
Tires | Kenda Honey Badger, 27.5x2.20, 60tpi |
Motor | Shimano STePS E6100M (USA), STePS E6100K (Europe), 250 W, 50 Nm Torque | |
---|---|---|
Battery | Shimano STePS BT-E8014, 418Wh |
