    AllTrack2023 Haibike
    Recommended
    MSRP
    ($3,437)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    4.3
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Hydraulic Disc
    		Bosch 250W 63Nm mid-drive
    		Bosch 500Wh
    		Alivio
    Drivetrain
    		1 × 9
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    haibike.com

    Summary

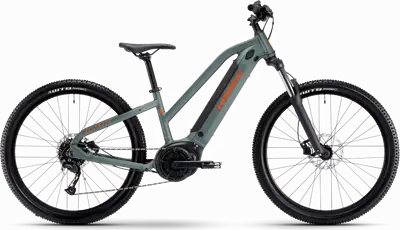

    		The Haibike AllTrack is a 27.5″ aluminum frame hardtail trail e-bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    AllTrack
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    AllTrack

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    AllTrack2023 Haibike
    Frame

    Aluminium

    Color: Olive / Orange - Matt

    Fork

    SR Suntour XCM32 Boost DS, Travel: 120mm

    Travel: 120mm

    Spring Type: Coil

    Bottom Bracket

    integrated in the motor

    Headset

    Feimin, A-Head Tapered, Ball bearing

    Stem

    XLC, A-Head, A-head, 31.8 mm

    Handlebar

    XLC, 720 mm

    Saddle

    XLC, MTB

    Seatpost

    XLC, Aluminium, Patent, 31.6 mm

    Type: Rigid

    Pedals

    Freeridepedal, Aluminium, with Reflector

    Grips

    XLC, MTB grips

    Groupset
    Rear Derailleur

    Shimano, Alivio M3100

    Crank

    Steel, 34 teeth

    Shifters

    Shimano, Alivio M3100, Trigger switch

    Cassette

    Shimano, HG200, 11 - 36 teeth

    Chain

    KMC, X9

    Brakes

    Alhonga, HT472, Hydraulic disc brakes

    Type: Hydraulic Disc

    Brake Levers

    Alhonga, HT472, Aluminium

    Wheels
    Rims

    Schürmann, Yak25, With Eyelets, Double Wall, Aluminium

    Spokes

    Sapim, Leader

    Tires

    WTB, Ranger Comp, 55-584, 27.5 x 2.3 inch

    Electric Components
    Motor

    Bosch, Performance Line Gen3 60, 250 W

    Battery

    Bosch PowerTube 500Wh

    Display

    Bosch, LED Remote
