    Revolt E+2022 Giant
    Recommended
    MSRP
    ($4,853)
    Where to Buy
    —
    $1

    At

    Category
    		Gravel, E-Bike
    6.0
    Frame
    		Aluminum
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano GRX 800 Hydraulic Disc
    		Shimano 85Nm mid-drive
    		500Wh
    		GRX Di2
    Drivetrain
    		1 × 11 Electronic
    Brand Site

    giant-bicycles.com

    Summary
    		The Giant Revolt E+ is an aluminum frame gravel e-bike with high-end components and shimano grx 800 hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Revolt E+
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    37 mph

    Revolt E+

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs

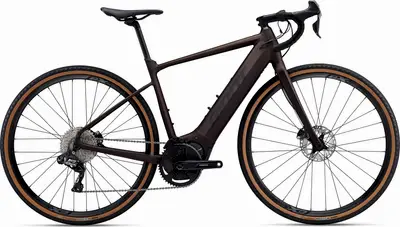

    Revolt E+2022 Giant
    Frame

    ALUXX SL Aluminum

    Color: Rosewood

    Fork

    Advanced-grade composite,12x100 thru-axle

    Shock

    -

    Bottom Bracket

    -

    Stem

    Giant Contact

    Handlebar

    Giant Contact XR D-Fuse, 31.85° back sweep, flared drop

    Saddle

    Giant Approach

    Seatpost

    Giant D-Fuse SL, composite

    Type: Rigid

    Pedals

    N/A

    Grips

    Giant Connect tape

    Groupset
    Rear Derailleur

    Shimano GRX Di2 RD-RX817

    Front Derailleur

    -

    Crank

    Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring

    Shifters

    Shimano GRX Di2 ST-RX815-R/L 1x11speed

    Cassette

    Shimano CS-M5100-11, 11-42, 11-speed

    Chain

    KMC e.11 Turbo, EcoProteq

    Brakes

    Shimano BR-RX810, hydraulic disc, 160mm

    Type: Shimano GRX 800 Hydraulic Disc

    Brake Levers

    Shimano ST-RX815 hydraulic disc

    Wheels
    Rims

    Giant eX 2, Tubeless Ready, 700c Aluminium

    Spokes

    Sapim E-Lite [r] Race [f]

    Front Hub

    Giant Performance Tracker Road, Sealed Bearing

    Rear Hub

    Giant Performance Tracker Road, Sealed Bearing

    Tires

    Maxxis Receptor, EXO, Skinwall, 700x40c (622x40), Tubeless, w/o Reflex

    Electric Components
    Motor

    SyncDrive Pro, 85Nm, Powered by Shimano EP8

    Battery

    EnergyPak Compact 500Wh EnergyPak Plus range extender compatible

    Remote

    RideControl GO, frame integrated, Support up/down from STI levers

    Display

    ANT+ Wireless display compatible

    Charger

    EnergyPak 4A smart charger compact

    Accessories
    Fenders

    Compatible with RGX 45 fender (sold separately) // needs *RGX Seat Tube Strap Mounting Kit* (part 540000042
