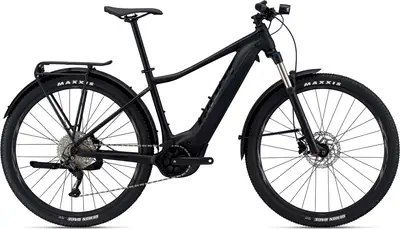

    Fathom E+ EX2022 Giant
    Recommended
    MSRP
    ($4,168)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    4.8
    Frame
    		Aluminum
    		Suntour XCR Air
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Yamaha 250W 70Nm mid-drive
    		Giant 625Wh
    		Deore
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    giant-bicycles.com

    Summary
    		The Giant Fathom E+ EX is a 29″ aluminum frame hardtail trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Fathom E+ EX
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    Fathom E+ EX

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Fathom E+ EX2022 Giant
    Frame

    ALUXX Aluminum, Overdrive 1½ - 1⅛" Head Tube, 141mm Boost QR, ISS, Giant EnergyPak Plus Range Extender Compatible, Integrated KS18 Kickstand Mount

    Color: Black

    Fork

    SR Suntour XCR 34 Boost Air LOR 29, 120mm travel, Tapered 1½ - 1⅛" steerer, lockout

    Travel: 120mm

    Spring Type: Air

    Shock

    -

    Bottom Bracket

    N/A

    Stem

    Giant Contact

    Handlebar

    Giant Connect TR Riser 31.8x780mm

    Saddle

    Giant Sport

    Seatpost

    Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium

    Type: Rigid

    Pedals

    Aluminum Platform

    Grips

    Giant Sole-O Grip

    Groupset
    Rear Derailleur

    Shimano Deore, 10-speed, Shadow+

    Front Derailleur

    -

    Crank

    FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T

    Shifters

    Shimano Deore

    Cassette

    Shimano CS-M4100-10 11-46T 10-speed

    Chain

    KMC e.10 Sport, e-bike optimized

    Brakes

    Shimano BR-MT200, hydraulic disc, 180mm [F&R]

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-MT200

    Wheels
    Rims

    Giant XCT 29 Tubeless Ready 25mm e-bike optimized

    Spokes

    Stainless steel

    Front Hub

    Shimano MT410 Boost, Center-Lock, [F] 110x15, Shimano MT200-B [R] 141mm OLD, QR

    Rear Hub

    Shimano MT410 Boost, Center-Lock, [F] 110x15, Shimano MT200-B [R] 141mm OLD, QR

    Tires

    Maxxis Rekon Race 29 x 2.25, Wire Bead, Dual Compound 60TPI

    Electric Components
    Motor

    SyncDrive Sport, 70Nm Powered by Yamaha

    Battery

    Giant EnergyPak Smart 625Wh, Giant EnergyPak Plus range extender compatible

    Display

    RideControl Dash, full color LCD screen

    Accessories
    Racks

    Giant Rack-It MIK
