    Fathom E+ 29 22021 Giant
    Recommended
    MSRP
    ($3,358)
    Where to Buy
    —
    $1

    At

    Category
    		Trail, E-Bike
    Weight
    		43.0 lbs
    4.5
    Frame
    		Aluminum
    		Suntour XCR
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Yamaha 250W 70Nm mid-drive
    		Giant 500Wh
    		Deore
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    giant-bicycles.com

    Summary

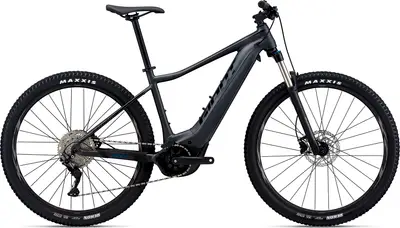

    		The Giant Fathom E+ 29 2 is a 29″ aluminum frame hardtail trail e-bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Fathom E+ 29 2
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    Fathom E+ 29 2

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Fathom E+ 29 22021 Giant
    Frame

    ALUXX Aluminium, Overdrive 1½ - 1⅛" Head Tube, 141mm Boost QR, ISS, Giant EnergyPak Plus Range Extender Compatible, Integrated KS18 Kickstand Mount, compatible with fenders

    Color: Gunmetal Black

    Fork

    SR Suntour XCR 32 Boost Coil LOR 29 120mm travel, Tapered 1½ - 1⅛" steerer, lockout

    Travel: 120mm

    Spring Type: Coil

    Shock

    N/A

    Bottom Bracket

    N/A

    Stem

    Giant Contact

    Handlebar

    Giant Connect TR Riser 31.8x690~780mm

    Saddle

    Giant Sport

    Seatpost

    Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium

    Type: Rigid

    Pedals

    Aluminium Platform

    Groupset
    Rear Derailleur

    Shimano Deore, 10-Speed, Shadow+

    Front Derailleur

    -

    Crank

    Forged Alloy minimal Q-factor, 36T Steel Direct Mount

    Shifters

    Shimano Deore

    Cassette

    Shimano CS-M4100-10 11-46T 10-Speed

    Chain

    KMC e.10 Sport, e-bike optimised

    Brakes

    Shimano BR-MT200, hydraulic disc, 180mm [F&R]

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-MT200

    Wheels
    Rims

    Giant XCT 29 Tubeless Ready 25mm e-bike optimised

    Spokes

    Stainless steel

    Front Hub

    Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR, e-bike optimised

    Rear Hub

    Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR, e-bike optimised

    Tires

    Maxxis Rekon 29x2.4", EXO, 60 TPI (max tyre width possible: 2.4" rear, 2.5" front)

    Electric Components
    Motor

    Giant SyncDrive Sport, 70Nm

    Battery

    Giant EnergyPak Smart 500, 36V Integrated Lithium-Ion

    Remote

    Giant RideControl One ANT+

    Display

    Wireless display compatible (ANT+ and Bluetooth)
