    Reveal 2.02012 Fuji
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    4.8
    Frame
    		Aluminum
    		RockShox Revelation RC
    		RockShox Monarch RT3
    Wheels
    		Aluminum
    Wheel Size
    		26″
    		Tektro Hydraulic Disc
    		XT, SLX
    Drivetrain
    		3 × 10
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		-
    Brand Site
    Summary

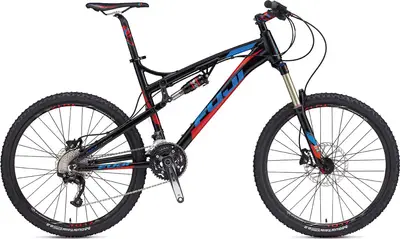

    		The Fuji Reveal 2.0 is a 26″ aluminum frame full suspension trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Reveal 2.0
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    Reveal 2.0

    Highest gear

    (descending)

    Geometry
    Specs
    Reveal 2.02012 Fuji
    Frame

    A6-SL alloy w/ semi-integrated tapered headset w/ 1 1/2" lower bearing, hydroformed top and down tube, water bottle mount

    BB Standard: BB86/BB92, Press Fit

    Fork

    RockShox Revelation RL Dual Air w/ remote lockout tapered alloy steerer w/ 15mm thru axle, 140mm travel

    Travel: 140mm

    Spring Type: Air

    Shock

    RockShox Monarch RT3 High Volume

    Bottom Bracket

    Shimano Press-Fit

    Headset

    Oval 1 1/8-1 1/2" semi-integrated, 30mm spacers

    Stem

    Oval M200 alloy reverse bolt technology, 31.8mm

    Handlebar

    Oval M200 alloy riser bar, 15mm rise, 9° sweep, 31.8mm, 680mm wide

    Saddle

    Oval M200 w/ CrMo rails

    Seatpost

    Oval M200, 31.6x350mm

    Type: Rigid

    Pedals

    N/A

    Groupset
    Rear Derailleur

    Shimano Deore XT SGS, 10-speed

    Front Derailleur

    Shimano SLX, 34.9mm

    Crank

    Shimano SLX Hollow Tech II w/ integrated spindle, 24/32/42T

    Shifters

    Shimano SLX Rapid Fire, 30-speed

    Cassette

    Shimano Deore, 11-36T 10-speed

    Chain

    KMC, 10-speed

    Brakes

    Tektro Auriga Pro hydraulic disc, 203/180mm rotor

    Type: Tektro Hydraulic Disc

    Brake Levers

    Tektro Auriga Pro hydraulic disc

    Wheels
    Rims

    Fuji custom 32H mountain hubs, Alex double wall rims

    Tires

    Continental Mountain King, 26x2.2" folding or Hutchinson Toro 26x2.35" folding
